Refrigerator Control Unit: Service and Repair

Cooler Compressor Control Module

Removing

- Remove cooler => [ Cooler ] Cooler.

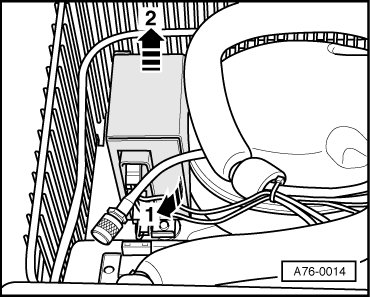

- Using a rotating motion, pull off control module from bracket - arrow 1 -.

- Remove control module - arrow 2 - upward.

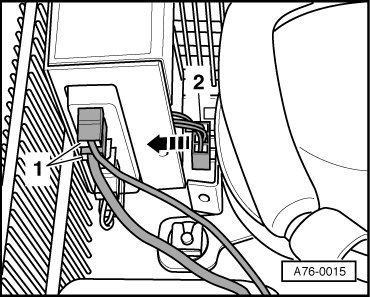

- Press off electrical harness connector - 2 - in direction of arrow from compressor.

- Disconnect electrical harness connectors - 1 - on control module.

Installing

Installation is reverse of removal.
