Display Group 049



Display Group 049

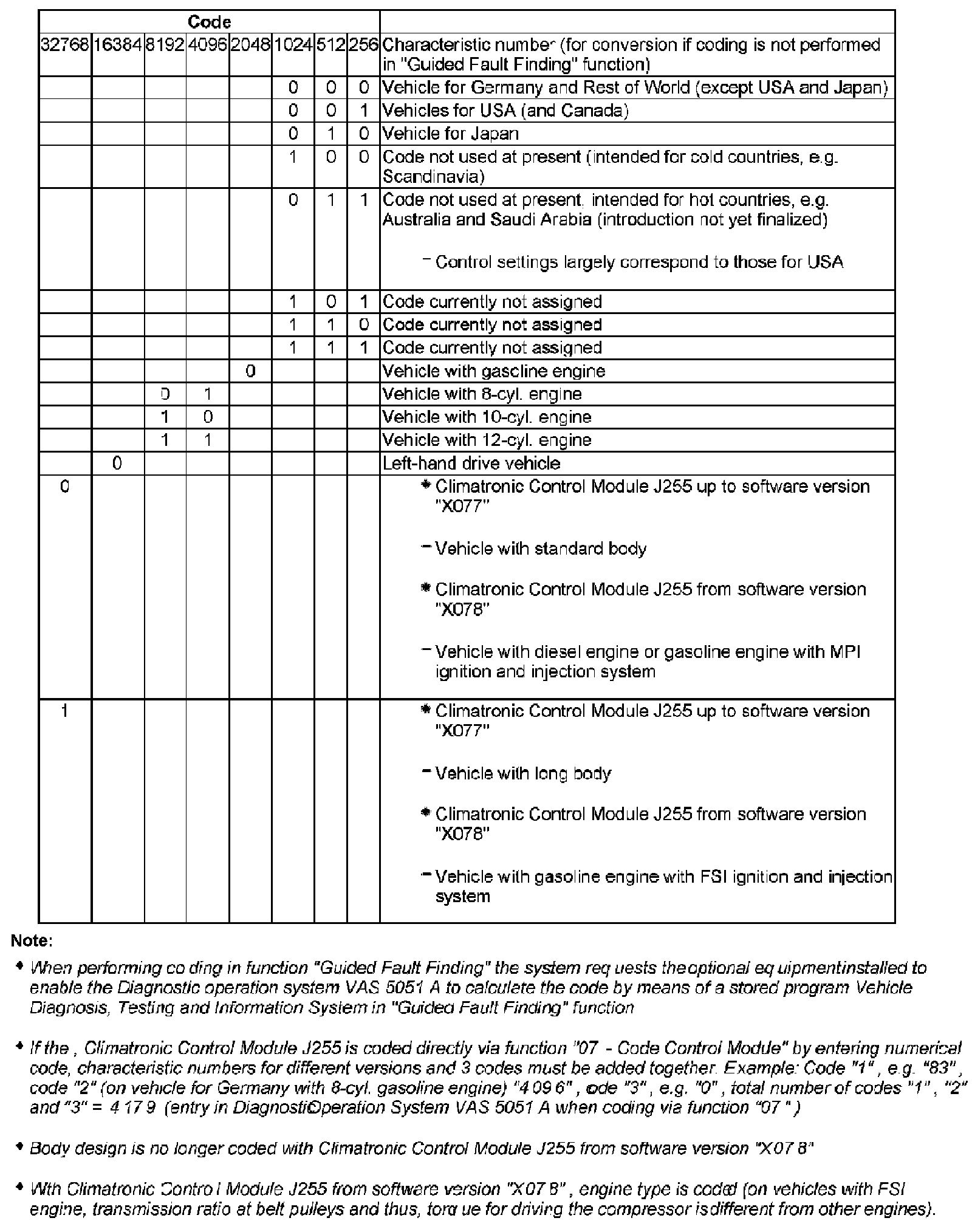

Display Group 048 - 049:

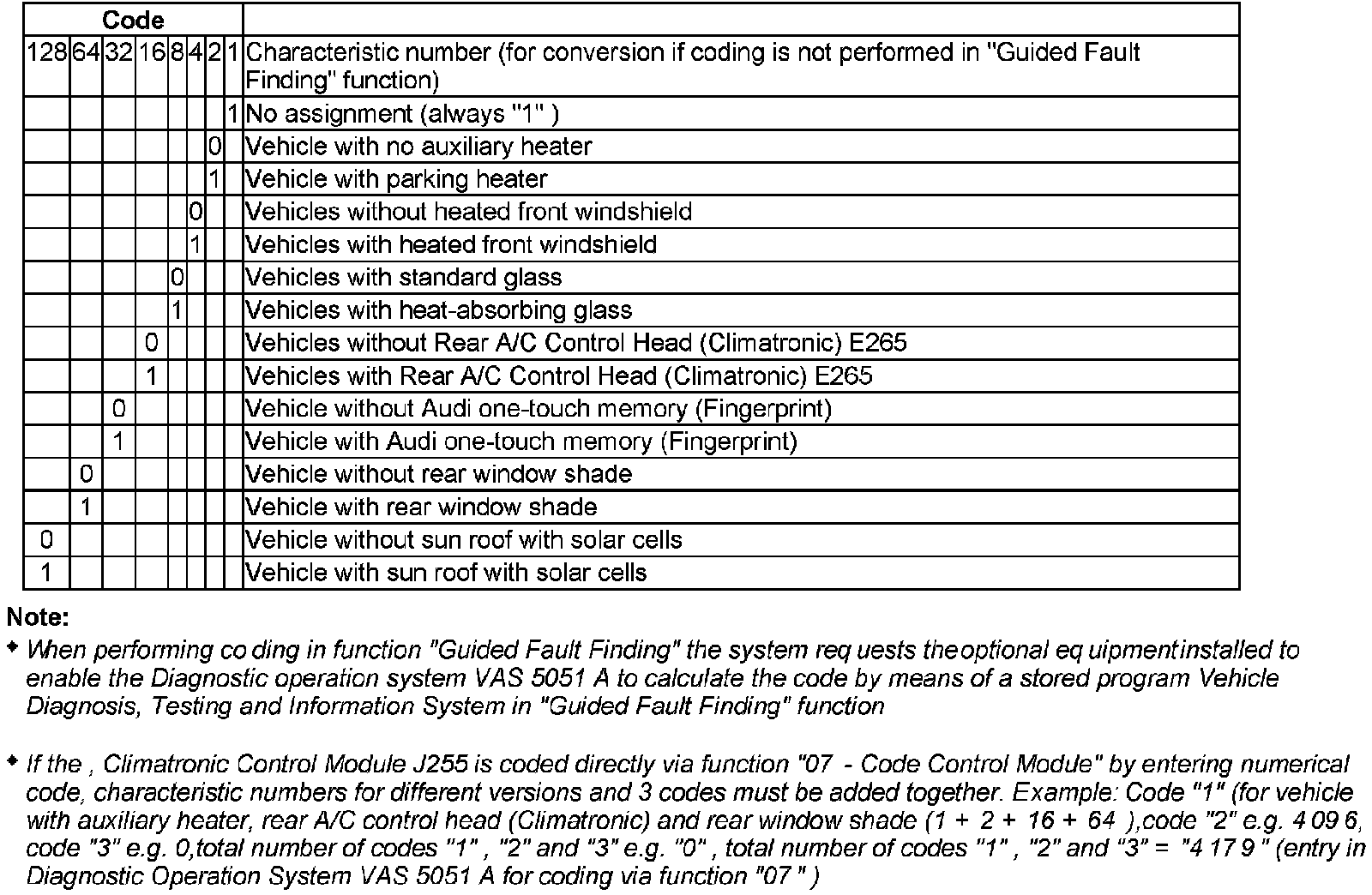

Explanatory notes on code "1" (optional equipment):

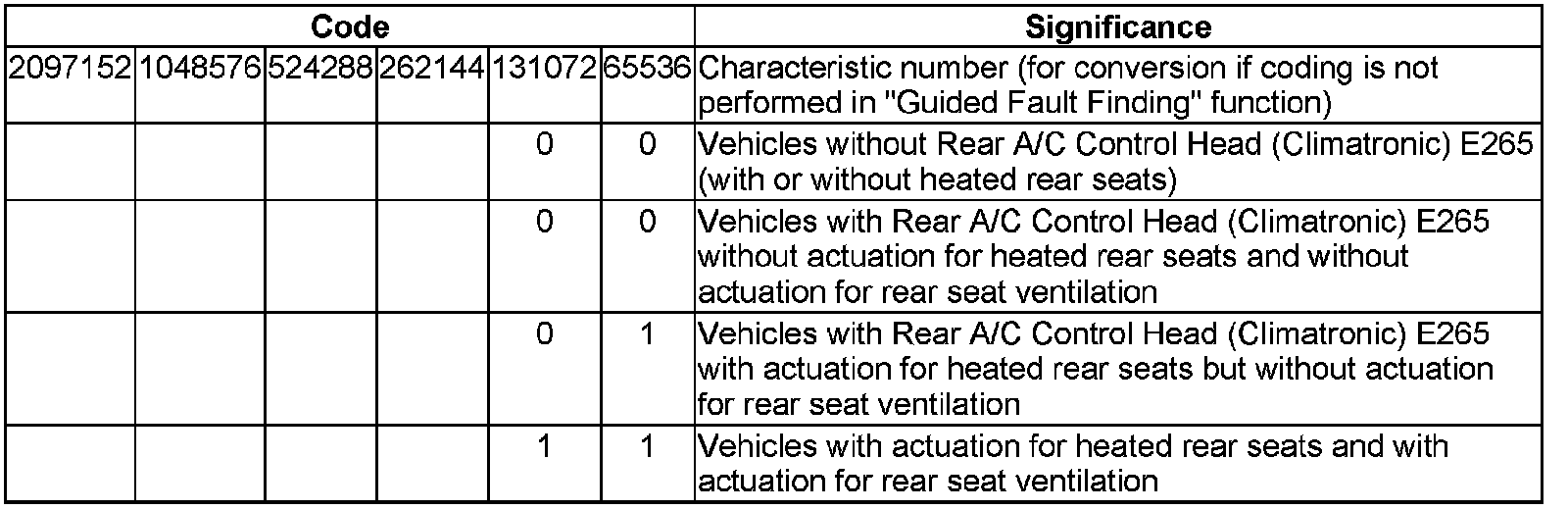

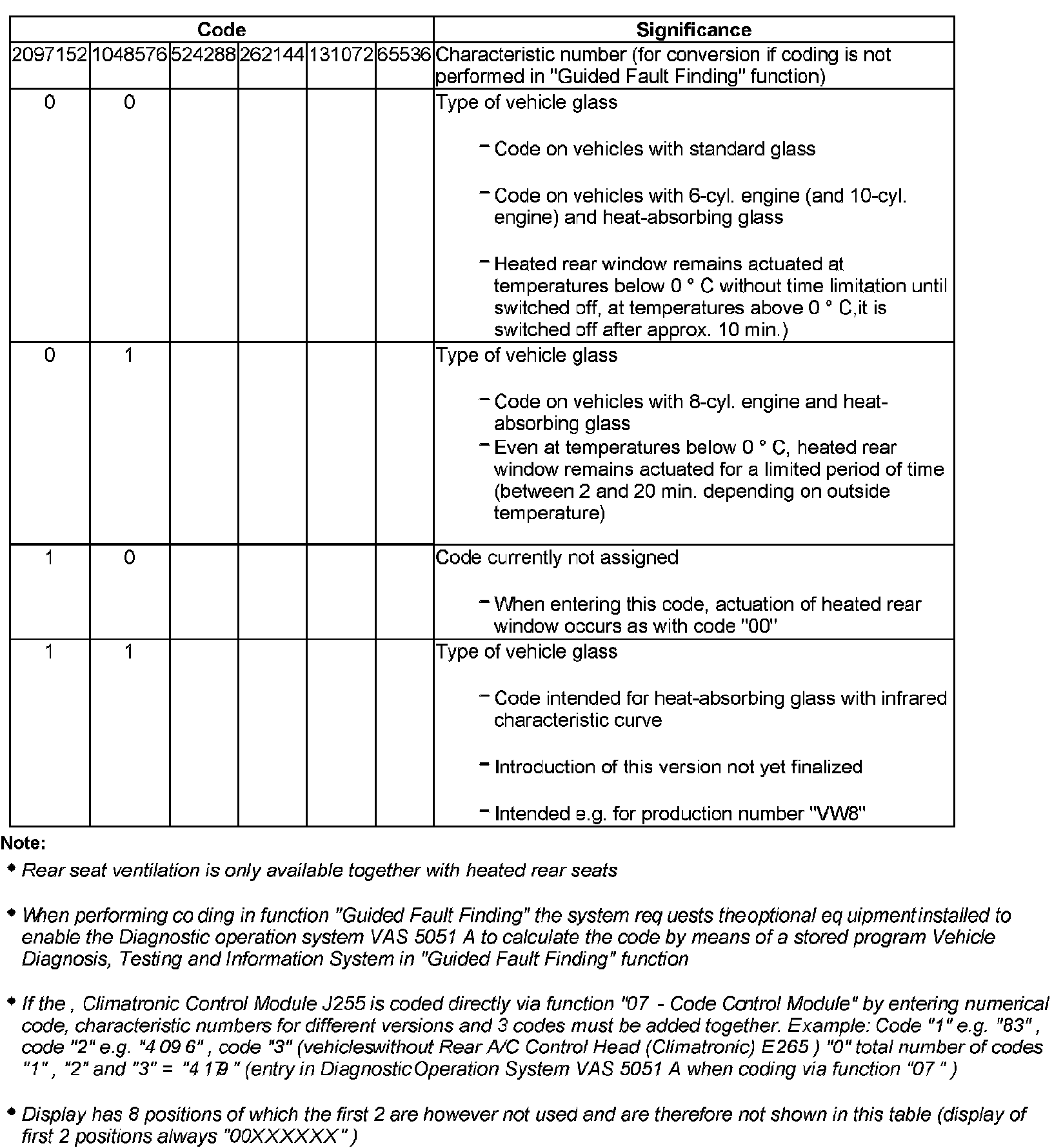

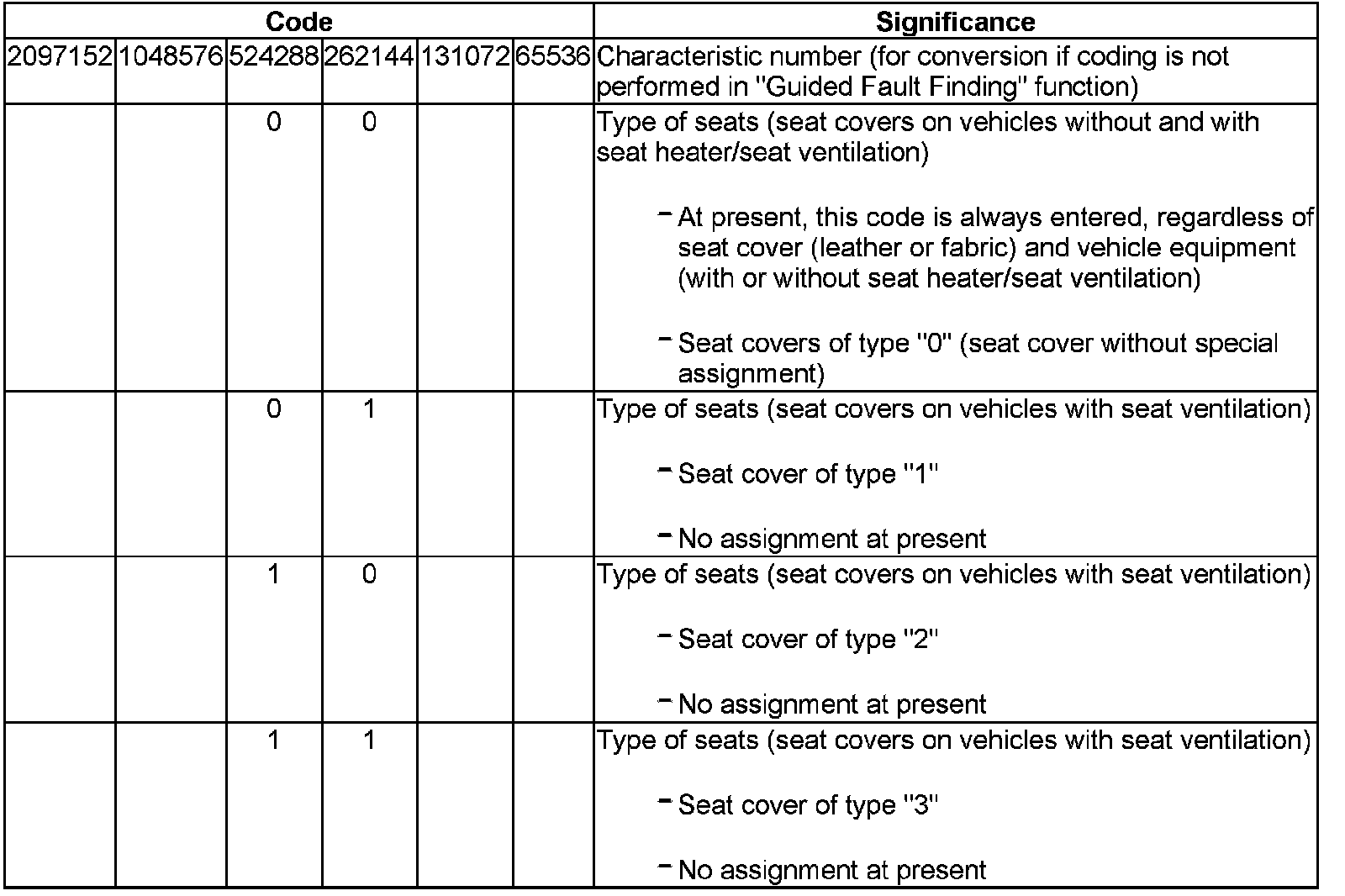

Explanatory notes on code "3" (rear seat heating/rear seat ventilation, seat covers and window glass)
