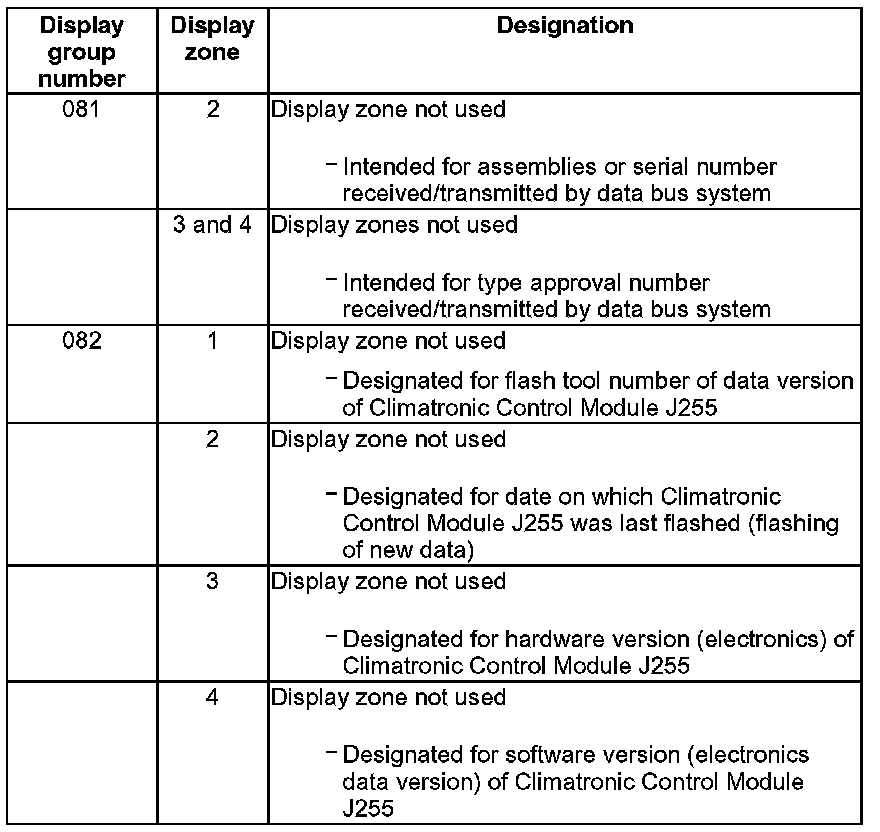

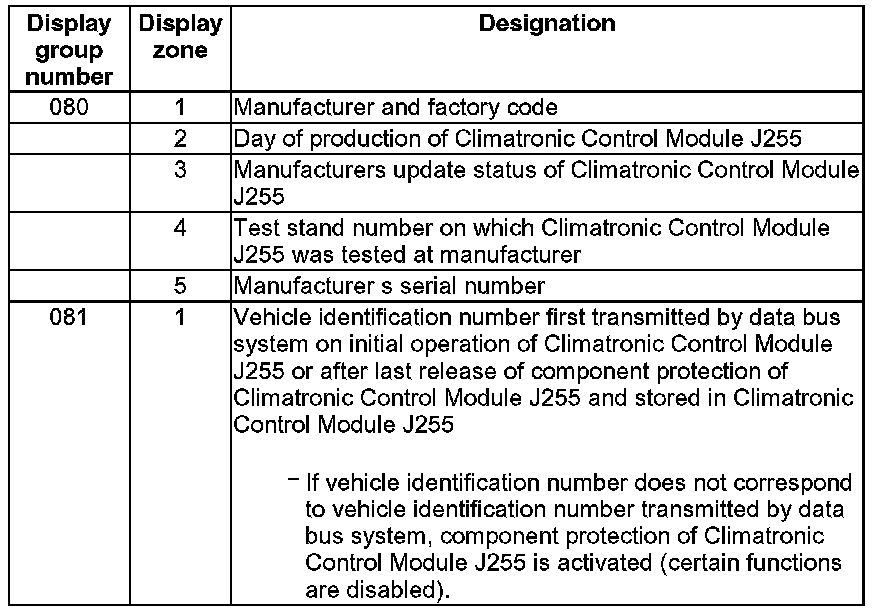

Display Groups Front For Climatronic Control Module J255 Which Are Not Currently Not Intended For Service Use
Display Groups Front For Climatronic Control Module J255 Which Are Not Currently Not Intended For Service UseNOTE: Depending on version of Climatronic Control Module J255, these measuring value blocks may not indicate any display or the display field is black.
