Trailer Lighting Module: Service and Repair



Towing Recognition Control Module J345, Removing And Installing

Towing Recognition Control Module J345 is located in luggage compartment, right, under battery

Removing
- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine .
- Remove battery

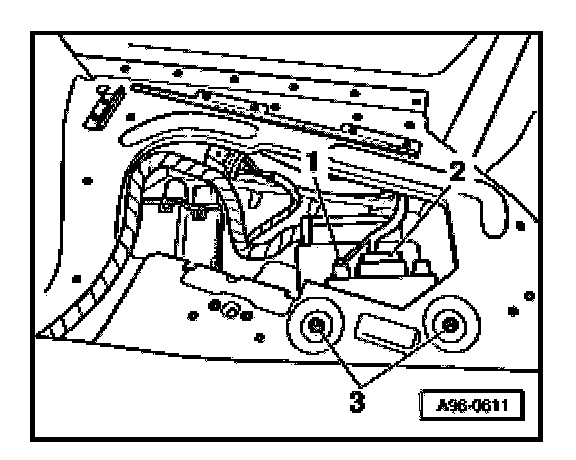

- Unplug connectors - 1 - and - 2 - .
- Remove bolts - 3 - and detach Towing Recognition Control Module J345.

Installing
Install in reverse order of removal, observing the following:
- Install battery .

Tightening torque

Component Nm
Towing Recognition Control Module J345 to body 3
