Front Toe, Adjusting






Front Toe, Adjusting

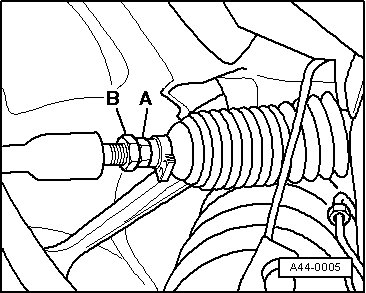

- Loosen the lock nut - B -.





- Adjust the toe on the left and right side at the hex - A -.

Be sure that the boot is not twisted after turning the tie rods.

Twisted boots wear out quickly.

- Tighten the lock nut - B -. Refer to - item 2 - in => [ Power Steering Gear ] Power Steering Gear, and check the toe in value again.

After tightening the lock nut - B - it is possible that the value deviates slightly.

If the measured toe nevertheless lies within the tolerance, the adjustment is correct.
