Alignment: Tools and Equipment





Special Tools

Special tools, testers and auxiliary items required

• ACC setting device (VAS 6190)

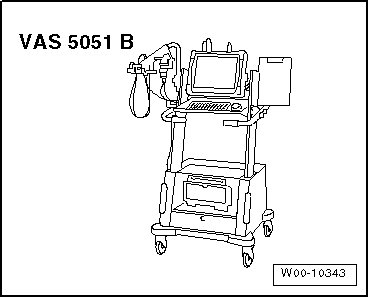

• Vehicle diagnostic, testing and information system (VAS 5051B)

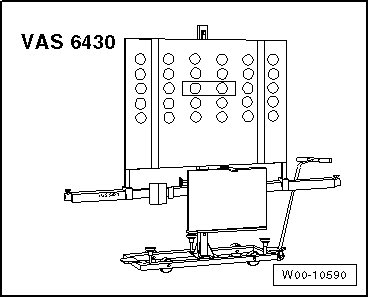

• Setting device (VAS 6430)





• Torque wrench (VAG 1410)

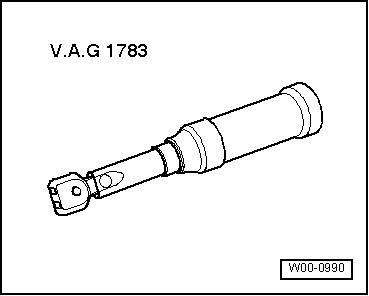

• Torque wrench (5-60 Nm) (VAG 1783)









Special tools, testers and auxiliary items required

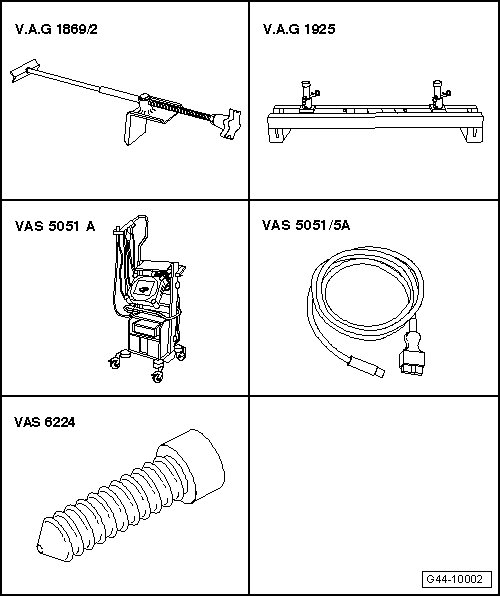

• Brake pedal actuator (VAG 1869/2)

• Spacer (VAG 1925)

• Vehicle diagnostic, test and information system (VAS 5051A)

• Diagnostic cable (VAS 5051/5A)

• Steering centering bolt (VAS 6224)

• Adapter (VAG 1925/1)

• Wheel alignment computer
