Driver Side Electronics Box






Driver Side Electronics Box

• Component location: On vehicle floor beneath driver's seat.

Removing

- Remove driver's seat.

- Switch off ignition and remove ignition key.

- Remove lower A-pillar trim.

- Fold back floor carpet.

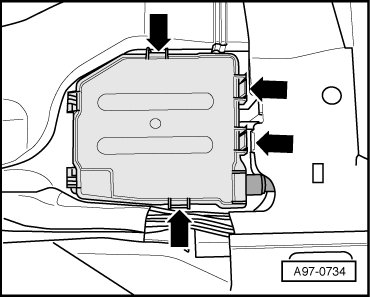

- Release cover for driver's side electronics box - arrows - and fold to side.





- Remove control modules - 1 - out of driver's side electronics box - 2 -.





- Take out electronics box.

• Check the exact assignment for driver side electronics box in the current wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Install lower A-pillar trim.

- Install driver's seat.
