Left CAN Cut-Off Connector






Left CAN Cut-Off Connector

Removing





- Switch off ignition and remove ignition key.

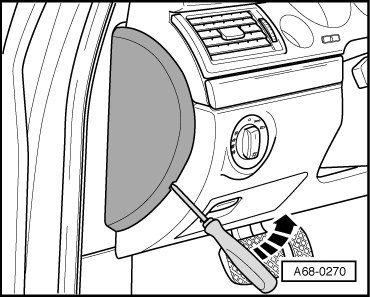

- Pry off left cover from instrument panel using a screwdriver - arrow -.

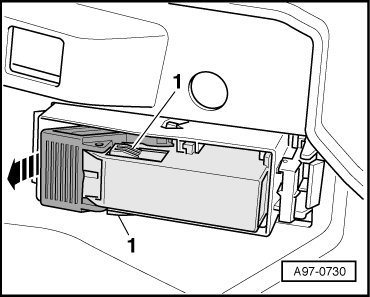

- Press catches - 1 - on multi-pin connector.





- Release securing bracket - arrow - and disconnect connector.

Installing

Install in reverse order.
