Tiptronic Switch F189



Tiptronic Switch F189, 09E, 6 Speed A/T

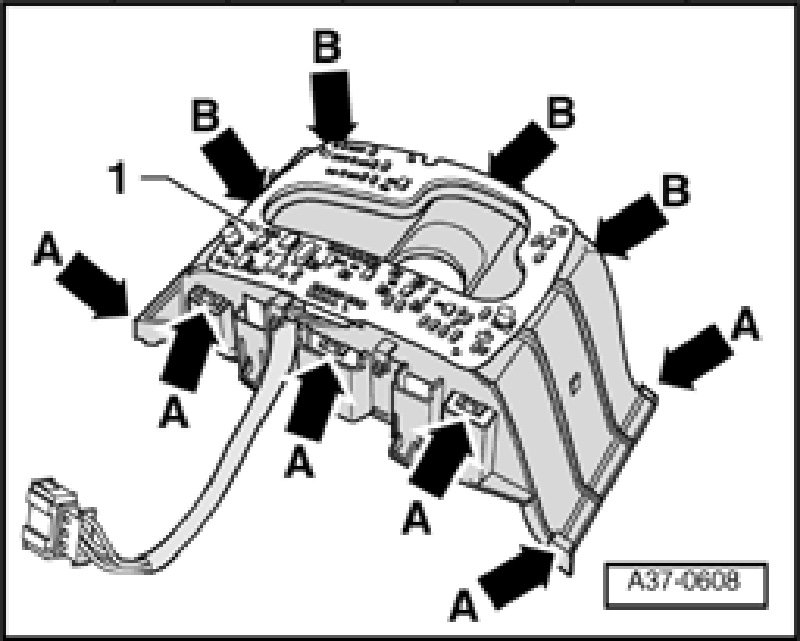

Location: Tiptronic Switch F189 is integrated into circuit board of symbol insert, which is located in shift mechanism cover.
