EVAP Canister System Assembly Overview

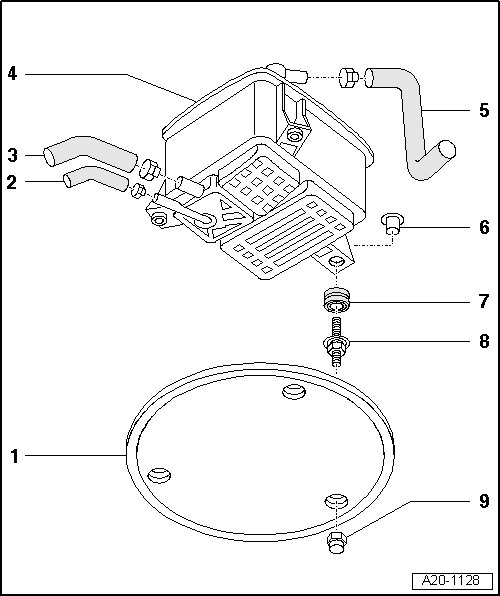

EVAP Canister System Assembly Overview 1 EVAP canister cover 2 Vent line •
To Evaporative Emission (EVAP) Canister Purge Regulator Valve (N80)
3 Vent line •
To
fuel tank 4 EVAP canister •
Component location: in the spare wheel well on the floor panel
5 Connecting hose •
Leak detection pump/EVAP canister
6 Bushing 7 Rubber grommet 8 Stud bolt - 16 Nm 9 Cap nut - 9 Nm
