Rear Seat Entertainment System, High






Rear Seat Entertainment System, High

Multimedia Signal Splitter

CAUTION!
• Switch off all electrical components.

• Switch off ignition and remove ignition key.

Removing

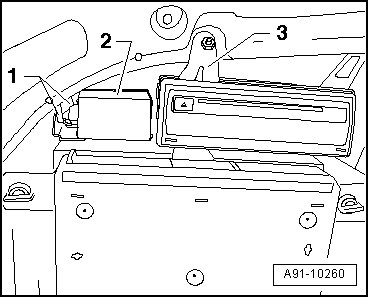

To better handle, first the Navigation System with CD Drive Control Module (J401) with bracket - 3 - must be removed => [ Navigation System with CD Drive Control Module ] Removal and Replacement.





- The Multimedia Signal Splitter (R181) - 2 - is secured to bracket of Rear DVD Changer (R162) with Velcro.





- Pull off Multimedia Signal Splitter (R181) - 2 - from bracket.

- Disconnect harness connectors - 1 - at Multimedia Signal Splitter (R181).

Installing

- Install in reverse order.
