Driver Door Control Module -J386- Or Front Passenger Door Control Module -J387-






Component Locations Control Module

Driver Door Control Module -J386- or Front Passenger Door Control Module -J387-

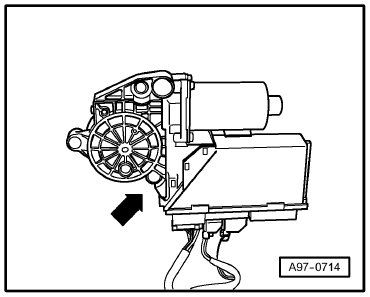

Component Location -J386-:







in Driver's Door => -arrow-


Component Location -J387-:


in Front Passenger's Door => -arrow-

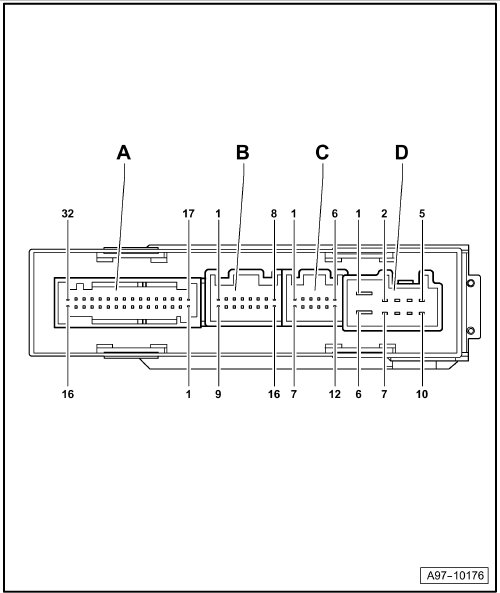

Pin Assignment:




Connector Front Doors:







A - 32-Pin Connector, white, Connector A

B - 16-Pin Connector, brown, Connector B

C - 12-Pin Connector, black, Connector C

D - 10-Pin Connector, black, Connector D
Connector Back Doors:

A - not used

B - 16-Pin Connector, brown, Connector A

C - 12-Pin Connector, black, Connector B

D - 10-Pin Connector, black, Connector C
