Cooling System -Fastener Tightening Specifications

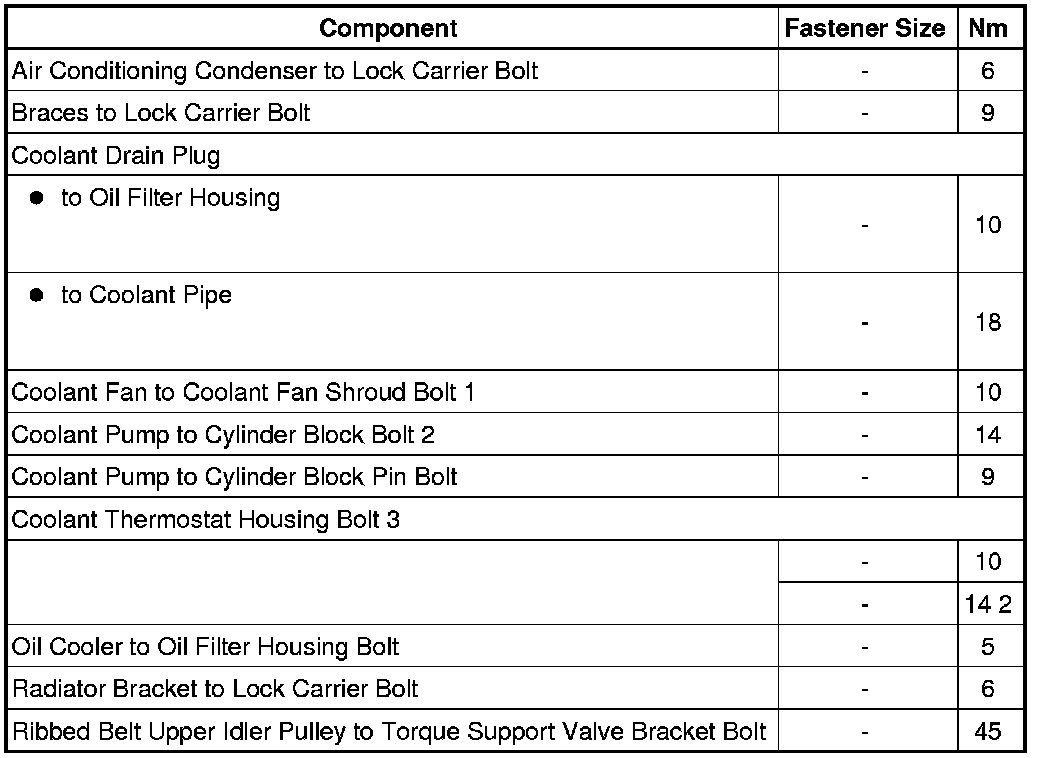

Fastener Tightening Specifications





• 1 Always replace

• 2 Strength class 10.9

• 3 For bolt clarification refer to - items 1 and 2 - in => [ Coolant Pump and Thermostat Assembly Overview ] Coolant Pump and Thermostat Assembly Overview
