Bosch Generator Overview, Through 2000

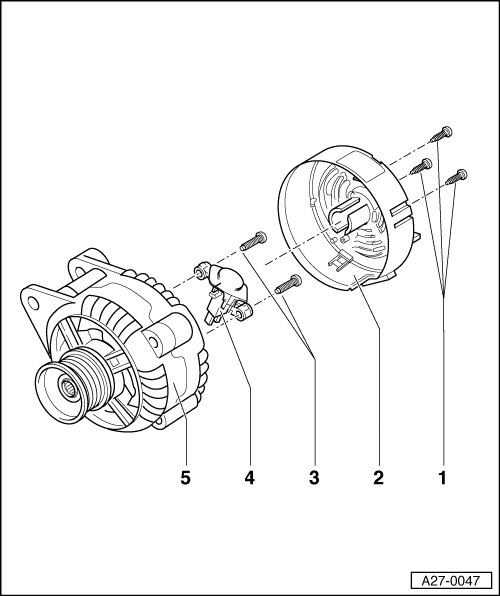

Bosch Generator Overview, Through 2000 1 Bolts •
1 Nm
2 Cover •
With 3 retaining tabs
3 Screws •
2 Nm
4 Voltage Regulator •
Removing:
-
Remove the bolts -
item 1 - and remove the protective cover -
item 2 -.
-
Remove the bolts -
item 3 - and remove the
voltage regulator.
•
Carbon brush wear limit: 5 mm
5 Generator
