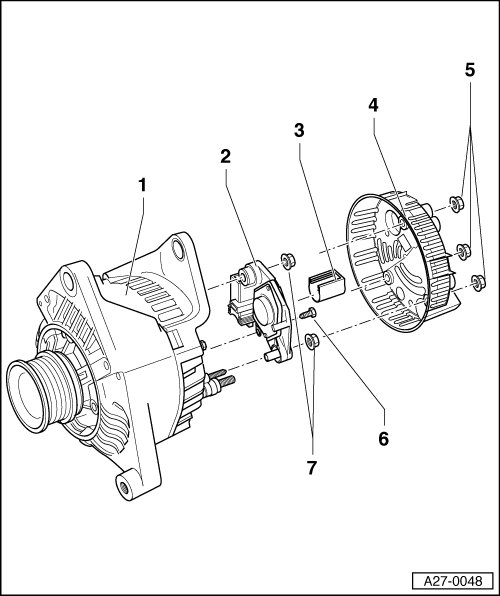

Valeo Generator Overview, Through 2000
Valeo Generator Overview, through 2000 1 Generator 2 Voltage Regulator •
Removing:
-
Remove the nuts -
item 5 - and cover -
item 4 -.
-
Remove the bolt -
item 6 - and nuts -
item 7 - and remove the
voltage regulator.
•
Carbon brush wear limit: 5 mm
3 Protective Cap 4 Cover 5 Nut •
2 Nm
6 Screw •
2 Nm
7 Nut •
3.5 Nm
•
Quantity: 2
