Window Regulator Switch






Window Regulator Switch

Removing

- Switch off ignition and remove ignition key.

- Remove front door trim.

- Detach insulating mat from door trim.

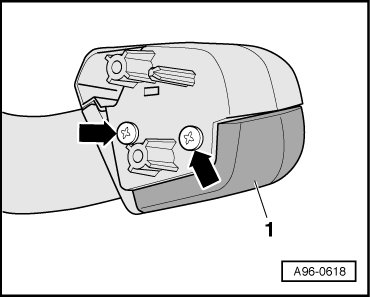

- Remove bolts - arrows - and detach armrest.

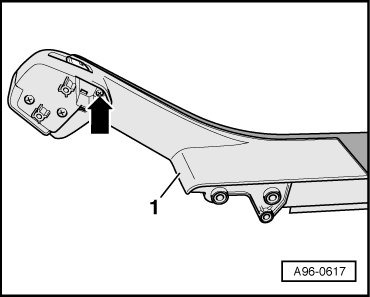

- Remove bolt - arrow - and detach switch mount - 1 - from armrest.





- Remove bolts - arrows - and detach switch mount with window regulator switch.

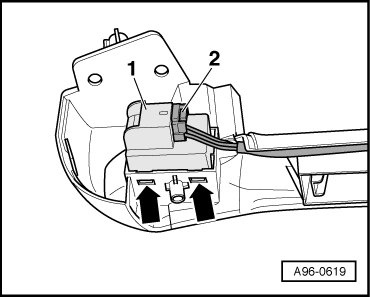

- Disconnect electrical connector - 2 -.





- Carefully release catches - arrows - using a small screwdriver.

- Pull Window Regulator Switch (in RF door) (E107) - item 1 - downward out of switch mount.

Installing

Install in reverse order of removal, observing the following:

- Press switch into switch mount until fasteners engage.

- Install front door trim.
