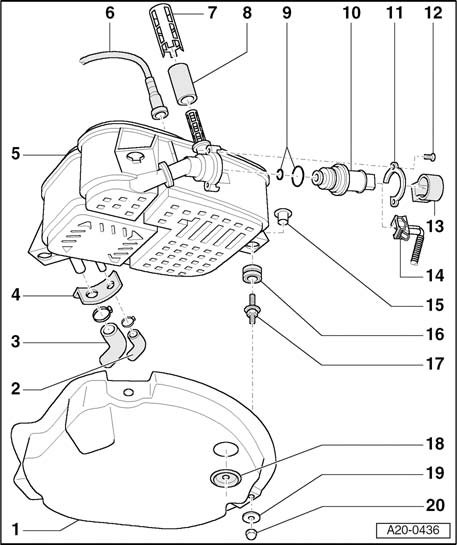

EVAP System Components, Assembly Overview

EVAP System Components, Assembly Overview







1 - Cover
- for EVAP canister
2 - Vent line
- to Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
3 - Vent line
- from gravity valve and pressure retention valve at fuel tank
4 - Sealing piece
5 - EVAP canister
- Component location: Bottom of spare wheel well
6 - Vacuum line
- to Leak Detection Pump (LDP) -V144-
7 - Bracket
- for air filter
8 - Air filter
9 - O-rings
- Replace
10 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2 -N115-
11 - Retaining ring
12 - 5 Nm
13 - Bracket
- for Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2 -N115-
14 - Electrical 2-pin connector
- black
15 - Bushing
16 - Rubber grommet
17 - Stud bolt - 16 Nm
18 - Grommet
19 - Washer
20 - Cap nut - 9 Nm
