Fuel Level Sensor






Fuel Level Sensor

Removing

Observe safety precautions. Refer to => [ Safety Precautions ] Fuel Supply System.

Observe rules for cleanliness. Refer to => [ Clean Working Conditions ] Fuel Supply System.

- Remove fuel delivery unit. Refer to => [ Fuel Delivery Unit ].

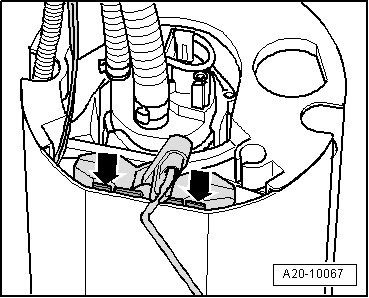

- Release retaining tabs - arrows - with a screwdriver and pull the Fuel Level Sensor (G) upward and out.





CAUTION!
Before remove electrical connectors on Fuel Level Sensor (G), first release contact retaining tabs.

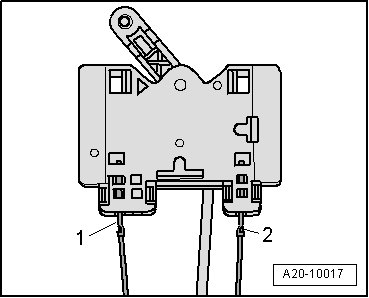

- Disengage electrical connector retaining tabs - 1 - and - 2 - and disconnect them.





Installing

Installation is in reverse order of removal, note the following:

- Connect the electrical connections - 1 - and - 2 - and check that they are securely engaged.

- Insert Fuel Level Sensor (G) in the guides on the fuel delivery unit and push down until it engages.

- Install fuel delivery unit , observing notes for connecting battery.
