Manifold Pressure/Vacuum Sensor: Service and Repair

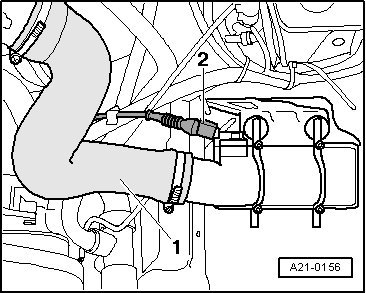

Charge Air Pressure Sensor Removing -
Disconnect electrical harness connector -
2 - at Charge Air Pressure Sensor (G31).
-
Remove bolts and pull out Charge Air Pressure Sensor (G31) from charge air cooler.
•
Ignore -
1 -.
Installing Installation is in reverse order of removal, note the following:
•
Replace O-ring.
Tightening Specifications
