Fastener Tightening Specifications






Fastener Tightening Specifications

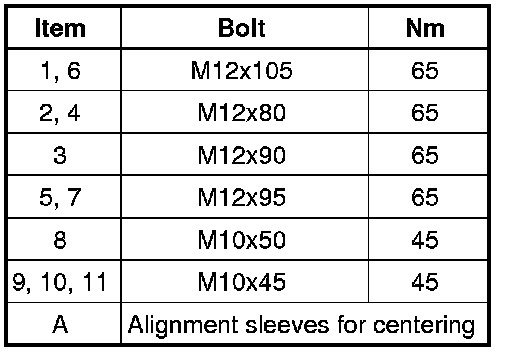

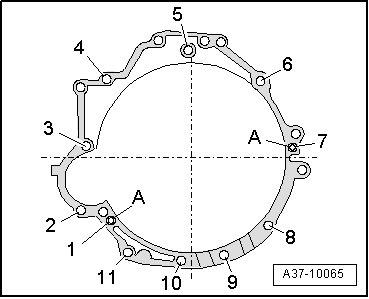

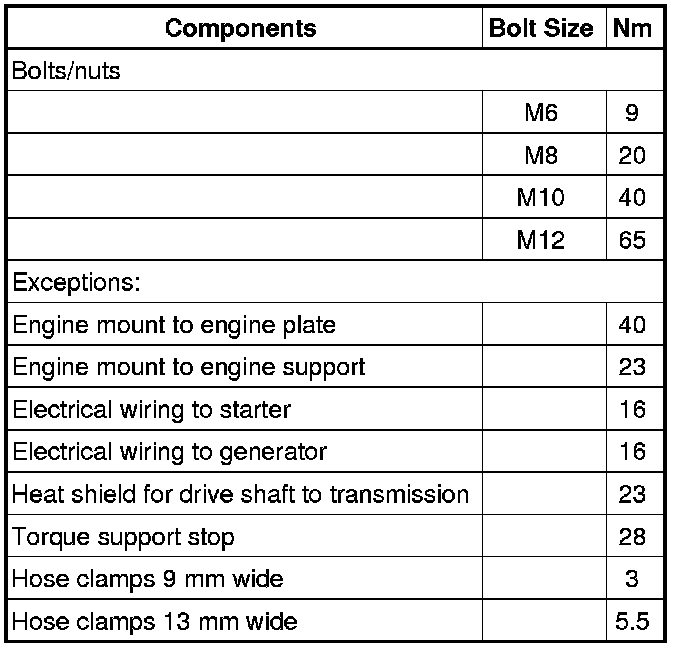

Engine/manual transmission, fastening

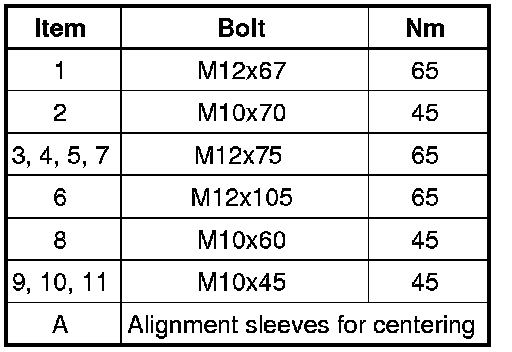

Engine/multitronic transmission, fastening









Cylinder head





Replace bolts

1. Step 40 Nm
2. Step 180° (2 x 90° is permissible)

Intake manifold 9 Nm

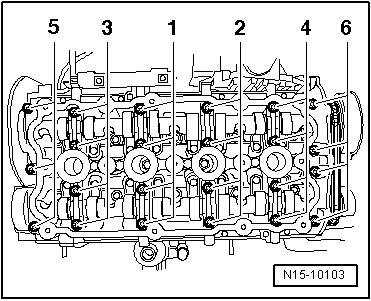

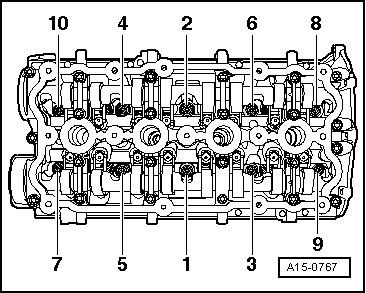

Camshaft bearing





Replace bolts. Gently tighten in several stages.

Tightening torque 8 Nm plus an additional 90°

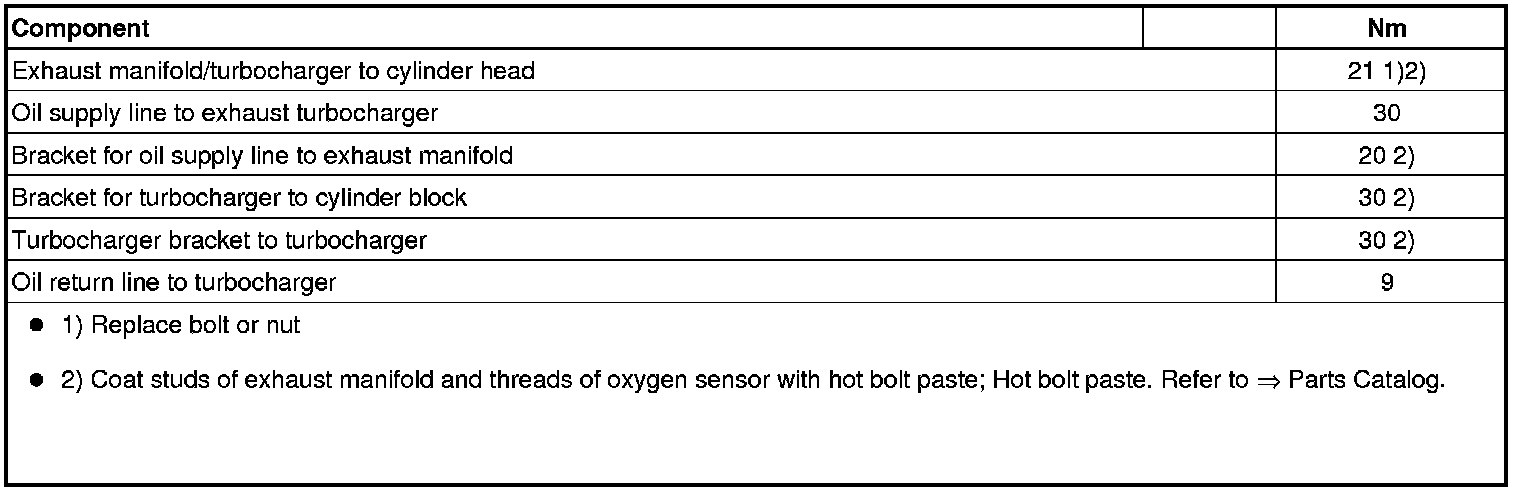

Turbocharger/exhaust manifold





Main Bearing caps 65 Nm plus 90° (1/4 turn)

Crankshaft pulley

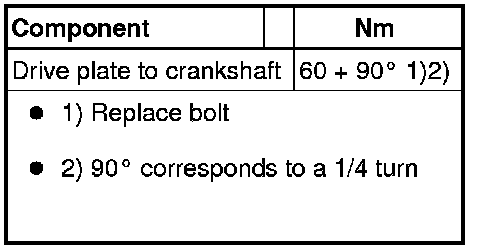

Drive plate

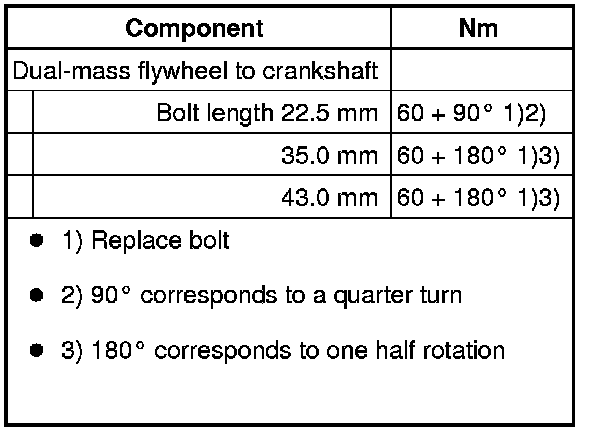

Dual-Mass Flywheel





Water pump 15 Nm
