Window Track: Service and Repair






Window Shaft Strips

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing

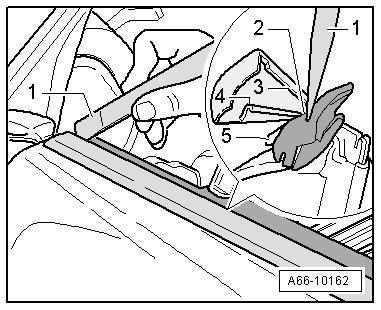

- Using Trim Removal Wedge (3409) - 1 -, press upper edge of rubber strip - 2 - down until it slides over upper edge of window shaft strip - 3 -.





- Pull Trim Removal Wedge (3409) along strip - arrow - in this position.

- Remove strip.

Installing

• Only use Cleaning Solution (D 009 401 04 ) as an installation aid.

• If other lubricants are used, the trim may fall off due to vibrations.

- Engage at top and lightly press down - rail slides over rubber

- Engage top of trim - 3 -.

- With flat hand, press trim down until rubber - 5 - slides over lower edge - 4 -.

- Pull with hand in this position over complete trim.
