Navigation System

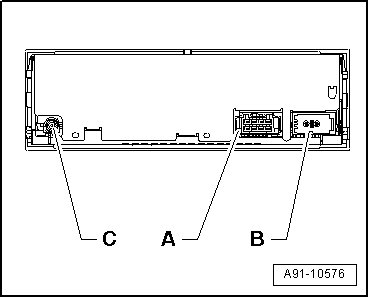

Navigation System through August 2008 Navigation System with CD Drive Control Module (J401) A
Black 8-pin connector (T8o)
B
MOST Bus
C
Blue GPS connection from
navigation system antenna (R50)/roof antenna (R216)
•
Unlisted connector terminals are not assigned.
A - 8-pin multi-pin connector (T8o) black 1
Terminal 31
2
Terminal 30
5
Ring-break diagnostic wire
B - MOST Bus 1. Input
2. Output
