Speech Input Control Module through August 2008
Speech Input Control Module through August 2008 •
Unlisted connector terminals are not assigned.

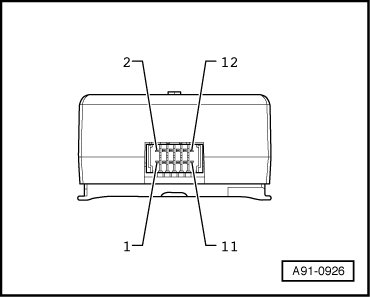

12-pin connector (T12h) 3
Status
4
Diagnosis
5
Terminal 30
6
Reset signal
7
Power good
8
Power on
9
Terminal 31
10
MOST out
11
Enable
12
MOST in
