Fastener Tightening Specifications - Controls, Housing

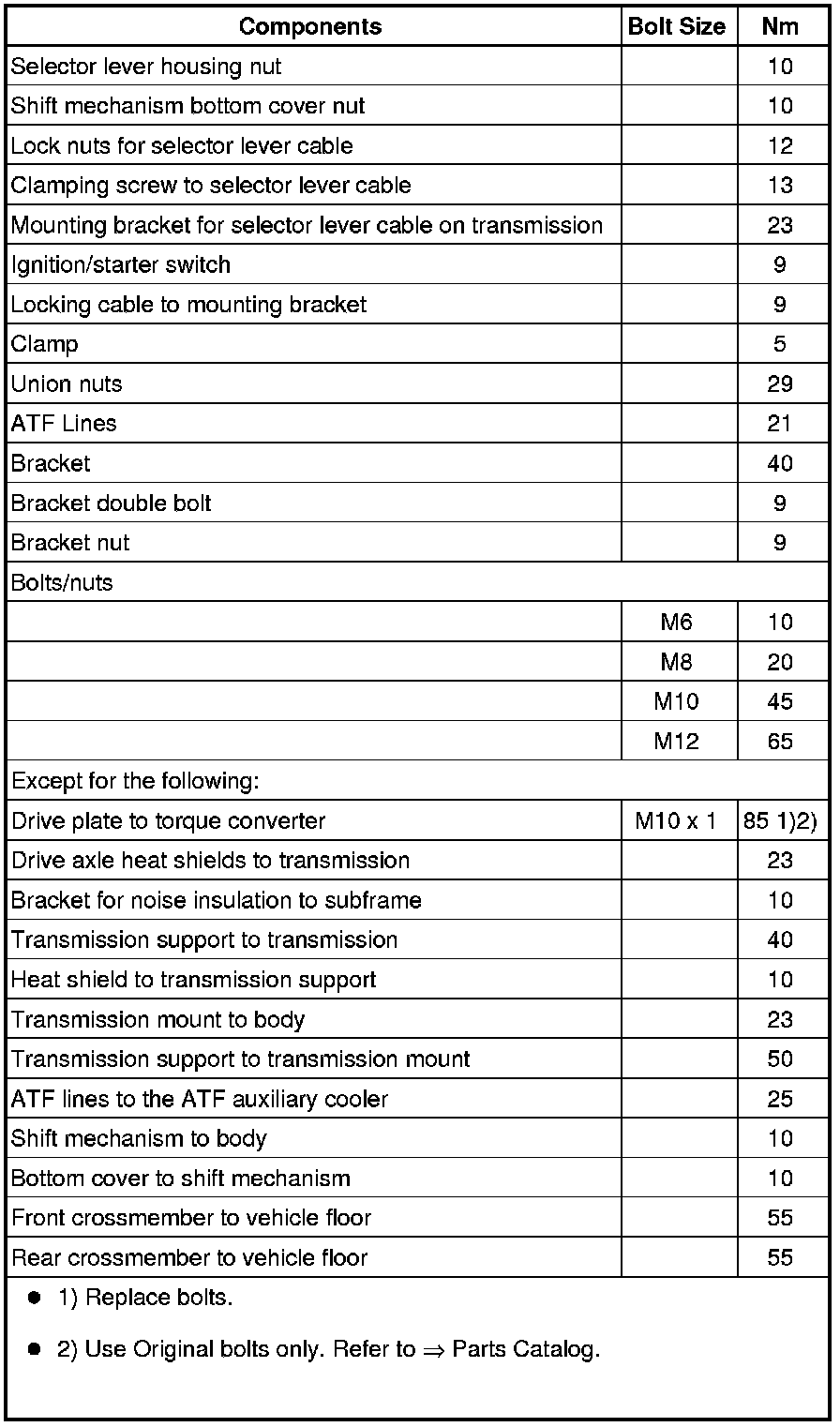

Fastener Tightening Specifications

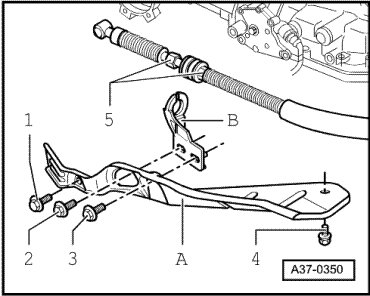

Heat Shield Over the Selector Lever Cable





1. Selector lever cable heat shield - A - to the transmission - 23 Nm

2. Bracket - B - to transmission - 23 Nm

3. Heat shield, exhaust system bracket and retaining bracket to transmission - 25 Nm.

4. Selector lever cable heat shield to transmission - 23 Nm.

5. Selector lever cable to bracket - 12 Nm

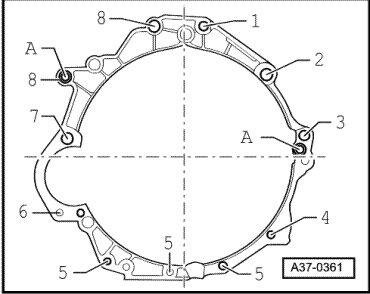

1.8L turbo gasoline engine to transmission









3.0L gasoline engine to transmission

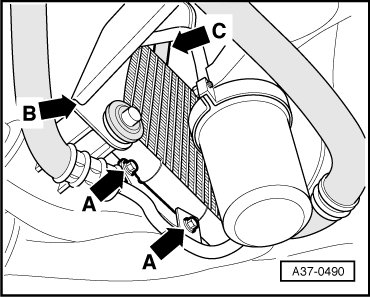

Install the ATF auxiliary cooler with pin - arrow C - on top of the charge air cooler bracket.





- Tighten the bolts:

A M6 x 17 bolt - 10 Nm
B M6 x 10 bolt - 5 Nm
