Access/Start Authorization System, Component Overview

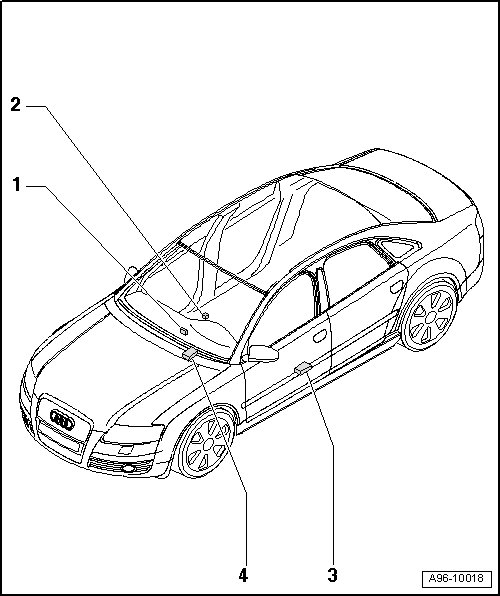

Component Locations: Access/Start Authorization System

Access/Start Authorization System, Component Overview







1 .Access/Start Authorization Switch -E415-
• Component location: In instrument panel, driver's side
2 Access/Start Authorization Button -E408- or Driver Identification Control Module -J589-
• Component location: In installation frame for Multimedia Control Head -E380-
3 Access/Start Control Module -J518-
• Component location: Under floor carpet beneath driver's seat => [ Access/Start Authorization Control Module ] Keyless Access Authorization System, Component Overview
4 Steering Column Lock Actuator -N360-
