Microphone Unit In Front Roof Module Overview

Telephone System

Microphone Unit in Front Roof Module Overview

The microphone unit (in front roof module) (R164) in the front interior lamp (W1) has three microphones maximum.

As of calendar week 22/04, only two microphones were installed.

One microphone is connected (Telephone Microphone (R38)) with the Telephone Transceiver (R36). The other microphones are connected to the Digital Sound System Control Module (J525).

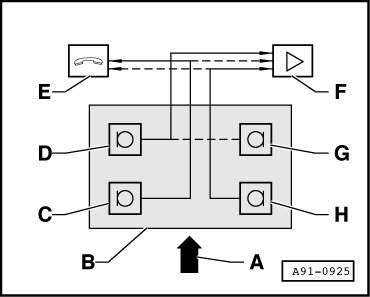

Microphone Unit in Front Roof Module (R164)





A Driving direction
B Front interior lamp
C Microphone 1 (black/gray) to Digital Sound System Control Module (J525)/Telephone Transceiver (R36)
D Microphone 2 (white) to Digital Sound System Control Module (left-side steering only) up to calendar week 21/04
E Telephone transceiver
F Digital Sound System Control Module
G Microphone 4 (red) to Digital Sound System Control Module (right-side steering only) up to calendar week 21/04
H Blue/green microphone 3 wire to the digital sound system control module/telephone transceiver

Microphone Unit (in front roof module) (R164), removing and installing, refer to => [ Microphone Unit in Front Roof Module ] Service and Repair.

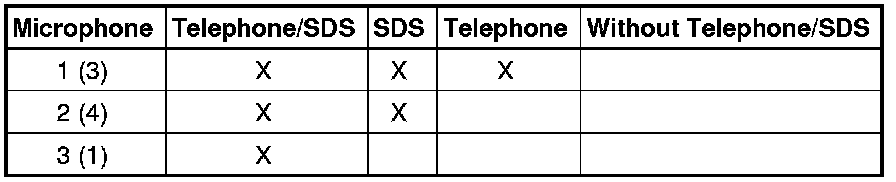

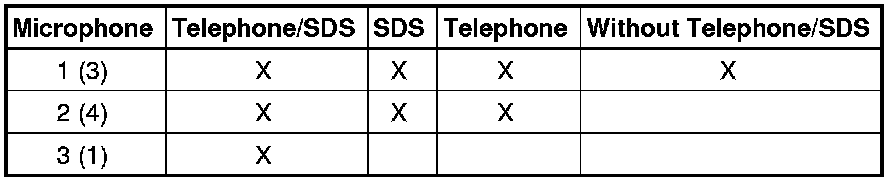

Installed Equipment Tables, through Calendar Week 21/04

Standard





(...) applicable to vehicles with right-side steering

BOSE





(...) applicable to vehicles with right-side steering

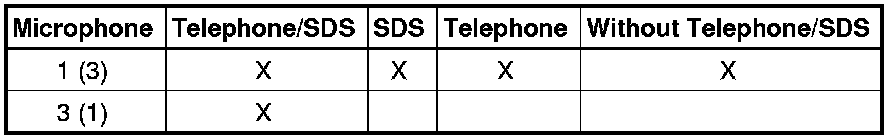

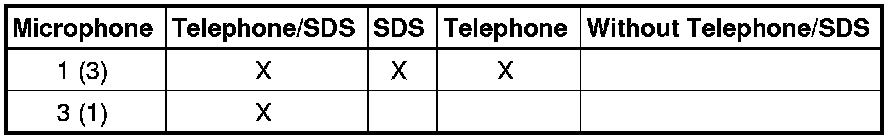

Installed equipment tables, as of Calendar Week 22/04

Standard





(...) applicable to vehicles with right-side steering

BOSE





(...) applicable to vehicles with right-side steering
