Rear DVD Changer Connectors, DVC 06

Rear Seat Entertainment System, Blaupunkt, from MY 07

Rear DVD Changer Connectors, DVC 06

• Unlisted connector terminals are not used.

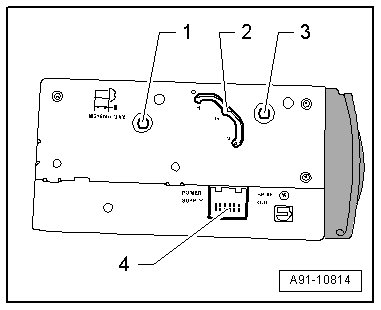

Rear DVD Changer (R162)





1. Transportation safeguard (removed)

2. Installed position (must always be vertical on "V")

3. Transportation safeguard (removed)

4. Black 12-pin connector (T12u) to the multimedia system control module (J650)

4 - Black 12-Pin Connector (T12u)





1. Terminal 30 from the multimedia system control module (J650), red

2. IR DATA from the multimedia system control module, purple

3. Right audio output wire to the multimedia system control module, white

4. Left audio output wire to the multimedia system control module, white

5. Video wire to the multimedia system control module, white

6. Not used

7. Terminal 31 from the multimedia system control module, black

8. Terminal 30 from the multimedia system control module, orange

9. TSENS from multimedia system control module, green

10. Ground shielding (audio), black

11. Ground shielding (video), black

12. Common shielding, black
