Multimedia System Control Module, Monitors, DVD Wire
Rear Seat Entertainment System, Plus Blaupunkt, from MY 07
Multimedia System Control Module, Monitors, DVD Wire

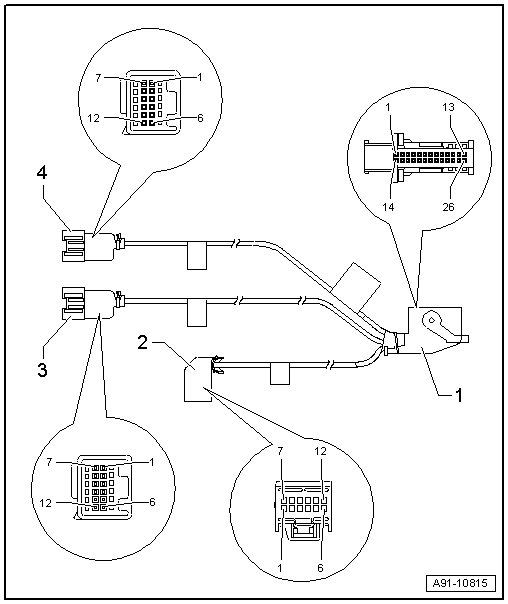

1 Green 26-Pin Connector (T26e) on the Multimedia System Control Module (J650)
2 Black 12-Pin Connector (T12u) to the Rear DVD Changer (R162)
3 Black 12-Pin Connector (T1ac) to the Multimedia Display Unit 1 (Y22)
4 Black 12-Pin Connector (T1ad) to the Multimedia Display Unit 2 (Y23)
• Unlisted connector terminals are not used.

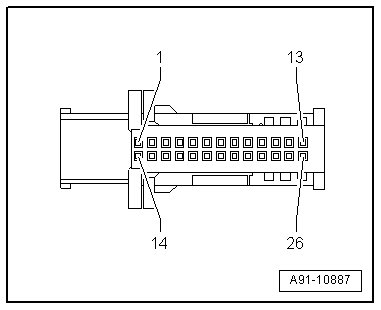

1 - Green 26-Pin Connector (T26e)
1. Terminal 30 to the rear DVD changer (R162), red
2. Terminal 30 switched to the rear DVD changer, orange
3. IR DATA to the rear DVD changer, purple
4. Ground shielding (Video) to the rear DVD changer, black
5. Video from rear DVD changer, white
6. IR DATA from multimedia display unit 1 (Y22), brown
7. Ground shielding (Video) to the multimedia display unit 1, black
8. Video wire to the multimedia display unit 1, white
9. TxD from the multimedia display unit 2 (Y23), blue
10. IR DATA from multimedia display unit 2, brown
11. Ground shielding (Video) to the multimedia display unit 2, black
12. Video wire to the multimedia display unit 2, white
13. RxD to the multimedia display unit 2, yellow
14. Terminal 31/whole screen to the rear DVD changer, black
15. TSENS to the rear DVD changer, green
16. Ground shielding (audio) to the rear DVD changer, black
17. Right audio wire from rear DVD changer, white
18. Left audio wire from rear DVD changer, white
19. Terminal 31 to the multimedia display unit 2, black
20. RxD to the multimedia display unit 1, yellow
21. TxD from the multimedia display unit 1, blue
22. Terminal 31 to the multimedia display unit 1, black
23. Not used
24. Not used
25. Terminal 30 to the multimedia display unit 2, red
26. Terminal 30 to the multimedia display unit 1, red

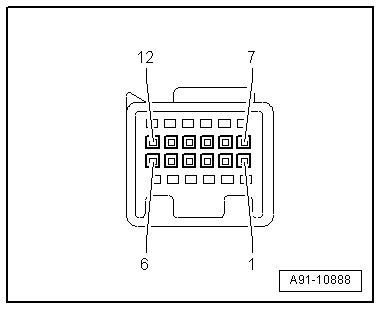

2 - Black 12-Pin Connector (T12u)
1. Terminal 30 from the multimedia system control module (J650), red
2. IR DATA from the multimedia system control module, purple
3. Right audio wire from rear DVD changer (R162), white
4. Left audio wire from rear DVD changer, white
5. Video wire from rear DVD changer, white
6. Not used
7. Terminal 31 from the multimedia system control module, black
8. Terminal 30 from the multimedia system control module, orange
9. TSENS from multimedia system control module, green
10. Ground shielding (audio), black
11. Ground shielding (video), black
12. Common shielding, black

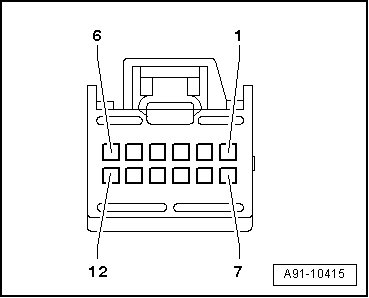

3 - Black 12-Pin Connector (T12ac)
1. Terminal 30 from the multimedia system control module (J650), red
2. TxD from the multimedia display unit 1 (Y22), blue
3. IR DATA from multimedia display unit 1, brown
4. Not used
5. Ground shielding (video), black
6. Not used
7. Terminal 31 from the multimedia system control module, black
8. RxD from multimedia system control module, yellow
9. Not used
10. Not used
11. Video wire to the multimedia system control module, white
4 - Black 12-Pin Connector (T12ad)
1. Terminal 30 from the multimedia system control module (J650), red
2. TxD from the multimedia display unit 2 (Y23), blue
3. IR DATA from multimedia display unit 2, brown
4. Not used
5. Ground shielding (video), black
6. Not used
7. Terminal 31 from the multimedia system control module, black
8. RxD from multimedia system control module, yellow
9. Not used
10. Not used
11. Video wire to the multimedia system control module, white
