Speaker (Telephone/Navigator)

Multi Functional Communication Unit (MFCU)

Speaker (Telephone/Navigator)

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove right lower B-pillar trim.

- Disconnect harness connectors and remove trim.

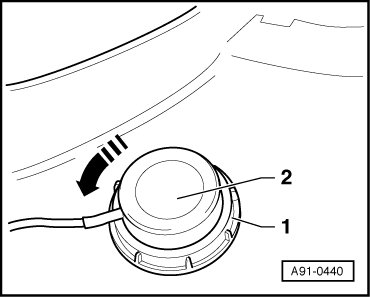

- Twist open the mount - 1 - on outside on speaker (telephone/navigator) (R39) - 2 - in - direction of arrow - and remove speaker (telephone/navigator) - 2 - from trim toward front.





Installing

- Install in reverse order of removal.
