Rear DVD Changer

Rear Seat Entertainment System, High Alpine

Rear DVD Changer

- Switch off all electrical consumers.

- Remove the key.

Removing

- Open left luggage compartment storage bin.

- Swivel rear DVD changer (R162) out and remove DVD magazine. Refer to RSE operating instructions.

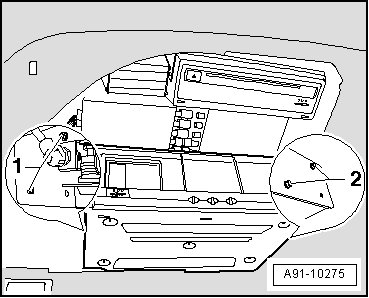

- Remove bolts - 1 - and - 2 - (3 Nm) and remove rear DVD changer from mounting frame.





- Disconnect harness connectors on rear DVD changer.

Installing

- Check the installed position.

The adjuster must be on "V".

- Remove the transportation safeguard.

- Install in reverse order of removal.
