Front Door Ambient Lighting Voltage Converter

Front Door Ambient Lighting Voltage Converter

Removing





- Remove the affected door trim panel.

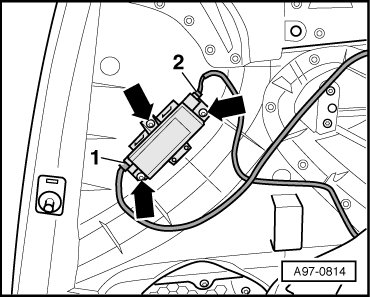

- Disconnect electrical connectors - 1 - and - 2 -.

- Remove bolts - arrows - and detach voltage converter for ambient lighting.

Installing

Install in reverse order of removal, observing the following:

- Install door trim.

Tightening Specifications
