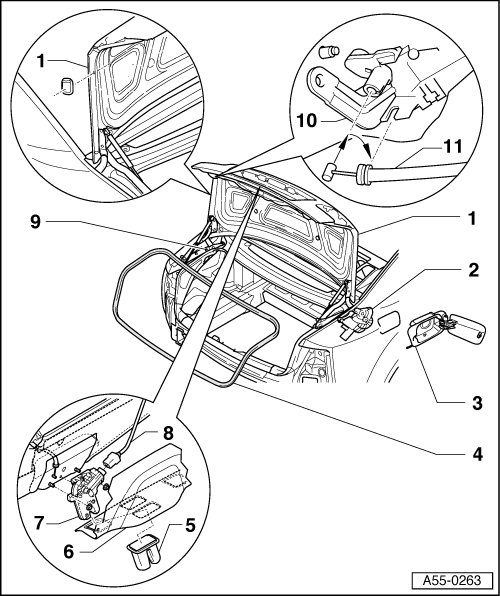

Assembly overview





1 - Trunk lid

2 - Drive motor for rear lid.

• Removal => [ Rear Lid Drive Motor ] Rear Lid Drive Motor.

3 - Fuel filler door

• Removal => [ Fuel Filler Door ] Fuel Filler Door.

4 - Gasket for rear lid

• Removal => [ Gasket for rear lid ].

5 - Latch cover

• Clipped into trim for rear lid.

6 - Rear lid trim

• Removing:

7 - Trunk lid lock

• Removal => [ Rear Lid Lock and Lock Cylinder ] Rear Lid Lock and Lock Cylinder.

8 - Electrical wire

9 - Removing lid hinge => [ Rear Lid Hinge ] Rear Lid Hinge.

10 - Lock cylinder mount

11 - Release cable

Gasket for rear lid





- Butt joint - arrow - is aligned to lid hinge in vehicle and press gasket - 1 - all around onto body flange.
