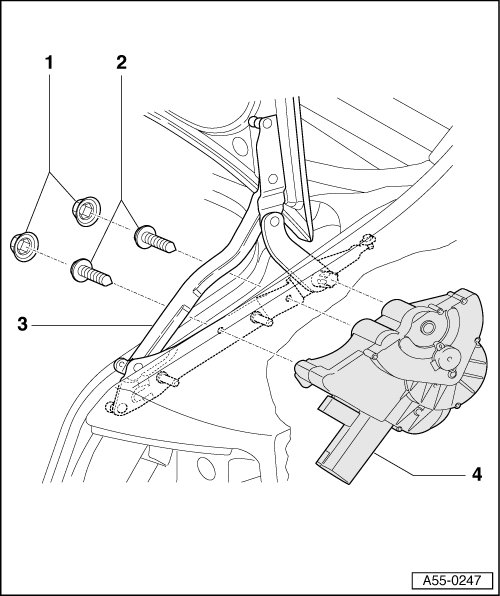

Rear Lid Drive Assembly Overview

Rear Lid Drive Assembly Overview





1 - Cover Caps for Bolts

2 - Bolts

• 21Nm

3 - Rear Lid Hinge

• Removal, refer to => [ Rear Lid Hinge ] Rear Lid Hinge.

4 - Drive Motor for Rear Lid

• Installing and installation position, refer to => [ Rear Lid Drive Motor Installation Position ] Rear Lid Drive Motor Installation Position.
