Cupholder Unit With Small Storage Compartment Cover

Center Console with Extension

Cupholder Unit with Small Storage Compartment Cover

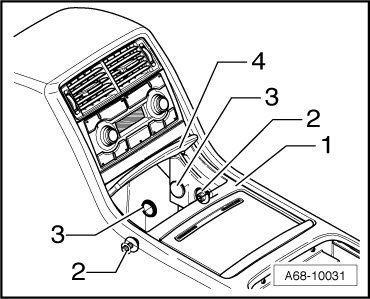

- Open cover for small storage compartment - 4 -.

- Unclip covers - 3 - (Qty. 2).

- Remove the bolts - 2 -.





- Close cover for small storage compartment - 4 -.

- Pull cup holder unit - 1 - with retaining tabs - 2 - upward out of mounts - 3 -.

- Disconnect harness connector to cup holder unit - 1 -.
