Center Defroster Outlet

Instrument Panel

Center Defroster Outlet

Removing

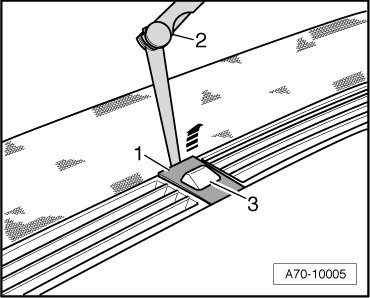

- Unclip cover cap - 1 - using a feeler gauge 0.35 mm - 2 - out of center defroster vent - arrow -.

- Pry out Sunlight Photo Sensor (G107) - item 3 - and disconnect harness connector.

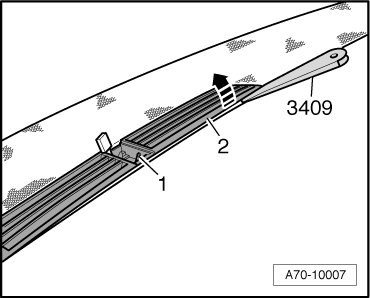

- Remove bolt - 1 -.





- As depicted in the illustration, pry center defroster vent - 2 - out of instrument panel using trim removal wedge (3409).

Installing

Installation is reverse of removal.

Tightening torque:

Center defroster vent to instrument panel: 2 Nm
