Front Information Display Control Head Trim

Instrument Panel

Front Information Display Control Head Trim

Removing





- Turn knurled wheel - 3 - for left air vent above glove compartment completely upward.

- Insert one watchmaker's screwdriver each - 1 - into air vent retaining clamps above the lower ventilation fin - 2 -.

- Pull air vent alternating on left and right side out of the installation opening, watchmaker's screwdrivers must remain inserted while doing this.

• Pull air vent out of installation opening using Hook (3438) if necessary.

- Disconnect electrical harness connector at air vent.

- Repeat the procedure on the right air outlet near the instrument cluster.

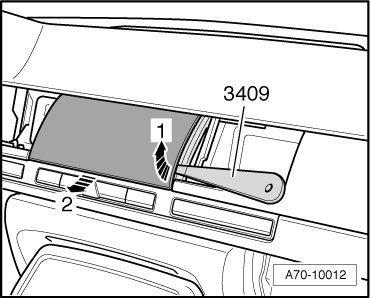

- Pry off panel at left and right on lower edge using trim removal wedge ( 3409) - arrow 1 -.





- Pull out panel from tabs of display unit downward - arrow 2 -.

Installing

Installation is reverse of removal.
