Lower A-Pillar Trim

Trim

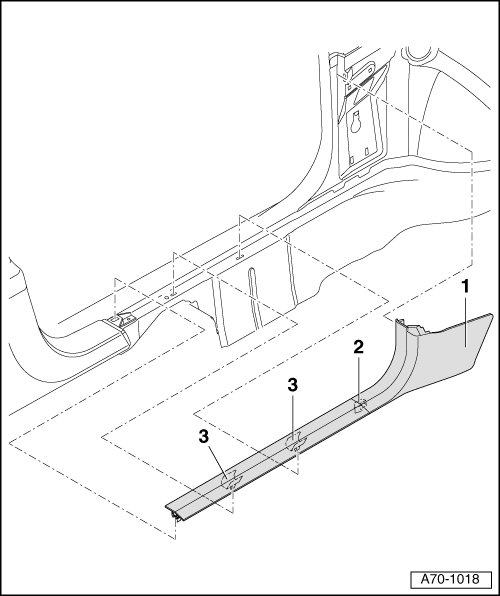

Lower A-Pillar Trim





1 - Lower A-pillar trim panel

• Removing

- Unclip lower A-pillar trim - 1 - out of both clips - 3 - (Qty. 2).

- Remove lower A-pillar trim - 1 - to the rear.

• Installing

- Slide lower A-pillar trim - 1 - at front into foot rest.

- Engage lower A-pillar trim - 1 - into bracket - 2 -.

- Clip lower A-pillar trim - 1 - on to both clips - 3 - (Qty. 2).

- Make sure that door rubber is pulled cleanly over lower A-pillar trim.

2 - Bracket

3 - Clips (Qty. 2)
