Interior Access/Start Authorization Antenna 2 R139, Removing and Installing

Interior Access/Start Authorization Antenna 2 R139, Removing And Installing







Removing

- Remove center console.

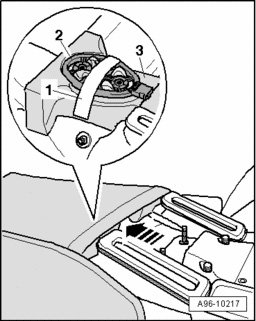

- Grasp by hand beneath floor carpet - arrow - and remove securing strap - 1 -.
- Remove Interior Access/Start Authorization Antenna 2 R139 - 2 - from foam cushion - 3 -.
- Disconnect connector.

Installing

Install in reverse order of removal, observing the following:

NOTE: The securing strap serves as an initial anchor on the assembly strap and must not be replaced when replacing Interior Access/Start Authorization Antenna 2 R139.

- Install center console.
