Rear Outer Floor Assembly Anchorage Point

Rear Outer Floor Assembly Anchorage Point

Removing

- Remove rear seat bench => [ Rear Bench Seat ] Rear Seats.

- Remove rear seatback => [ Front Door Trim ] Front Door Trim and => [ Rear Backrest ] Rear Seats.

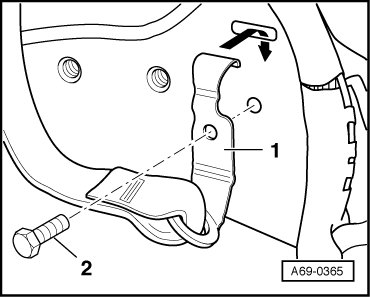

- Remove screw - 2 -.





- Disengage anchorage point - 1 -.

Installing

- Engage anchorage point - 1 - in direction of arrow.





- Install bolt - 2 -.

• Tightening torque: 55 Nm.
