Sunroof Parallel Movement, Checking and Adjusting

Sunroof Parallel Movement, Checking and Adjusting

• The parallel movement adjustment can only be performed in zero position and drive motor removed.

- Slide slotted guide rails from front to rear.

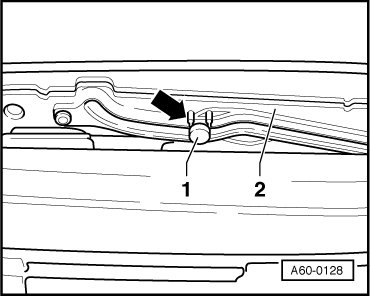

Guide pin - 1 - must be located between markings - arrow - on left and right link guide.





- Re-install drive motor and solar panel.

- After installing drive motor and panel, an initialization and a learning phase must be performed.
