Backrest Bracket






Individual Power Rear Seats

Backrest Bracket





- Remove seat pan => [ Seat Pan ]. Seat Pan

- Remove backrest => [ Individual Rear Seat ] Individual Rear Seat

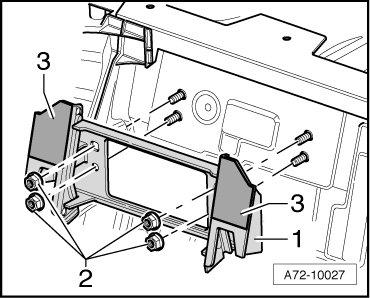

- Remove nuts - 2 - (Qty. 4). Tightening torque: 8 Nm

- Remove backrest bracket - 1 -.

3 Felt
