Center Armrest

Rear Seats

Center Armrest

Removing

- Remove rear seat bench => [ Rear Bench Seat ]. Rear Bench Seat

- Remove rear seat backrest => [ Rear Backrest ]. Rear Backrest

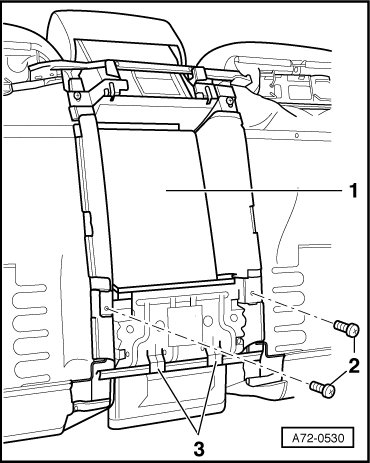

- Remove bolts - 2 - (Qty. 2).





- Disengage center armrest - 1 - from brackets - 3 - (Qty. 2).

Installing

- Install center armrest - 1 - in reverse order of removal.
