Brake Pedal and Brake Booster, Separating

Brake Pedal and Brake Booster, Separating

Special tools, testers and auxiliary items required

• Release tool (T10159)

- Remove the cover on the driver side.

- Remove brake light switch. Refer to => [ Brake Light Switch ] Service and Repair.

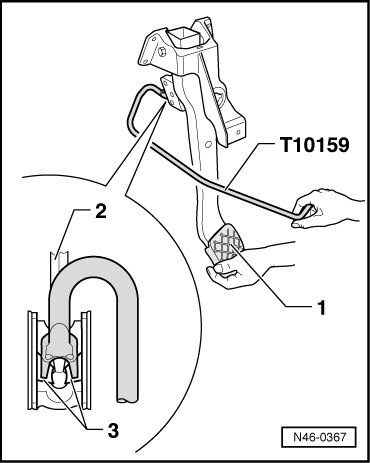

- First press brake pedal in direction of brake booster and hold.





1 Brake pedal
2 Pressure rod
3 Retaining lugs

- Insert (T10159) and pull in direction of driver seat. When doing this, counter-hold on brake pedal. (At this moment the pedal must not be allowed to move backward). The mounting retaining lugs - 3 - will thereby be pressed off the ball head of the push rod - 2 -.

For ease of illustration separating the brake pedal from the brake booster is shown with the pedal assembly removed.

Clip brake pedal together with brake booster.

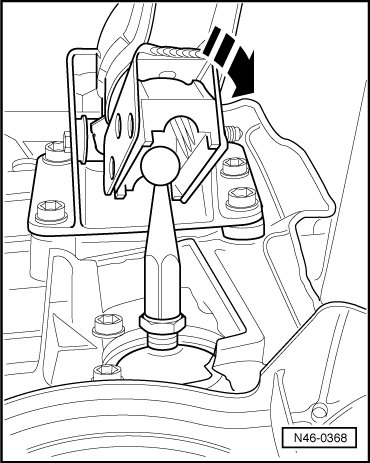

- Hold ball head of push rod in front of mounting and push brake pedal in direction of brake booster, so the ball head locates audibly.





Further installation is in the reverse sequence to removal.

- Adjust brake light switch. Refer to => [ Brake Light Switch ] Service and Repair.


Make sure the brakes are working correctly before driving the vehicle for the first time.
