Antenna Amplifier Connectors, From 1 September 2008

Radio System

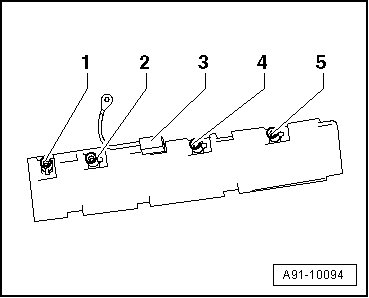

Antenna Amplifier Connectors, from 1 September 2008





1. Connection TV1 (green) to TV Tuner (R78)

2. AM/FM1 connection (white) to Radio (R)

3. Ground (GND) connection to roof (9 Nm)

4. TV2 connection (yellow) from the TV tuner

5. TV3 connection (purple) to the TV tuner
