Rear Seat Entertainment System, Low

Rear Seat Entertainment System, Low

Rear DVD Changer, Harness Connectors

• Unlisted connector terminals are not assigned.

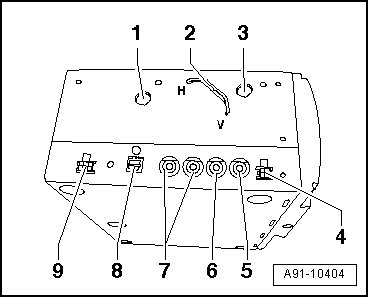

Connectors





4 Remote (not used)
5 Video out 2 (not used)
6 Video out 1 (yellow) to Multimedia Signal Splitter (R181)
7 Audio out 1 (white, red) to Multimedia Signal Splitter (R181)
8 SPDIF out (not used)
9 Power supply (black) to Multimedia Signal Splitter (R181)
