CD Player Connectors

Radio System

CD Player Connectors

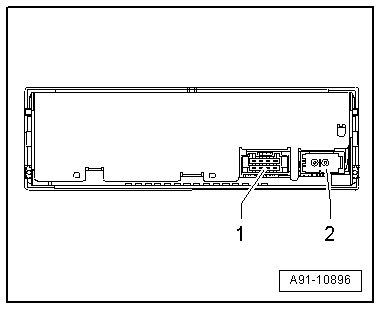

CD Player (R89)





1. Black 8-pin connector

2. MOST bus

• Unlisted connector terminals are not used.

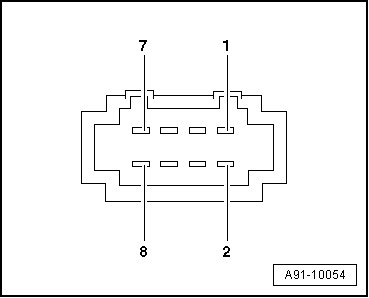

1 - Black 8-Pin Connector





1 Terminal 31
2 Terminal 30
5 Ring-break diagnostic cable

2 - MOST Bus





1. Input

2. Output
