Diagram 121/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

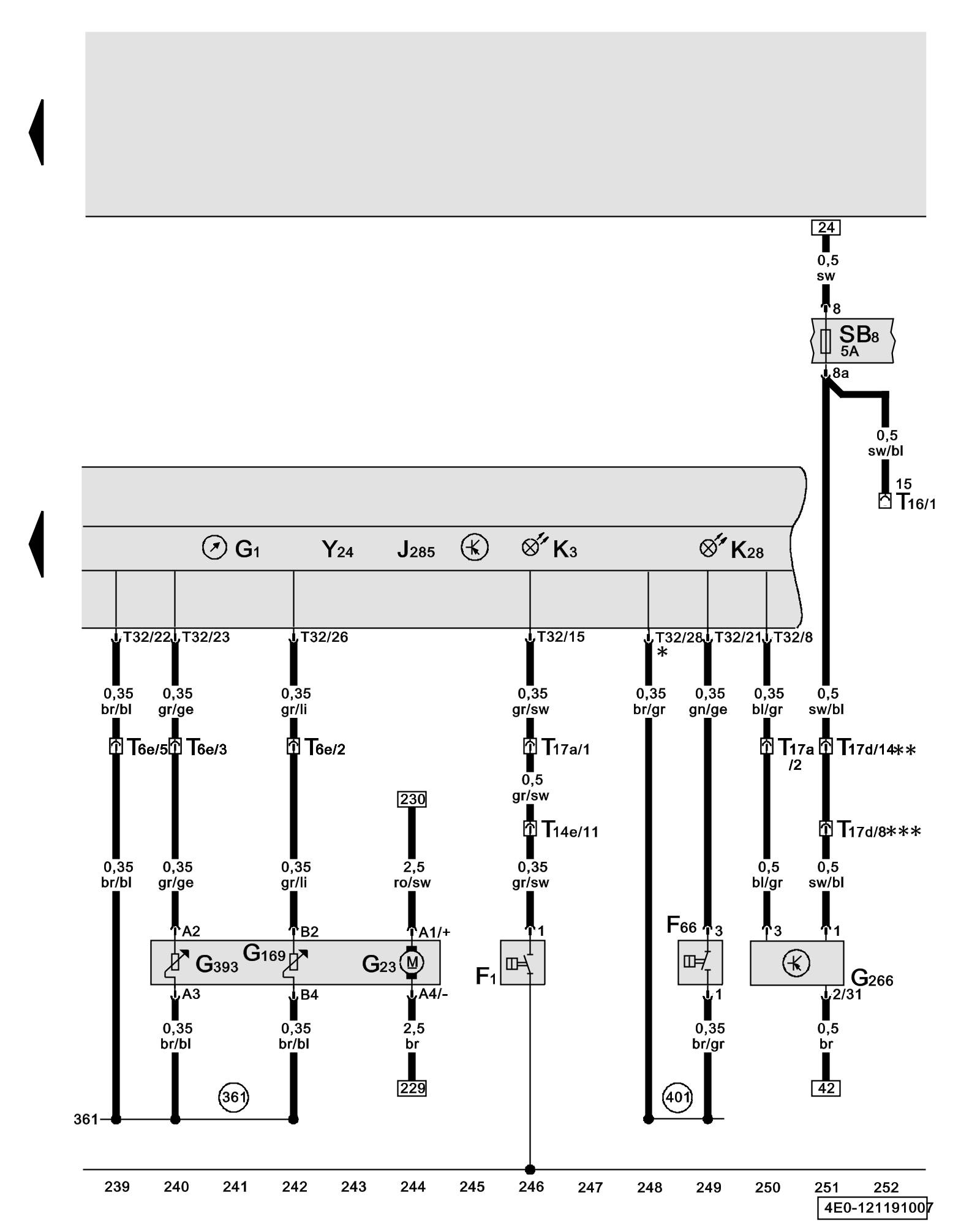

Instrument Cluster Control Module, Fuel Gauge, Fuel Pump, Fuel Level Sensor, Oil Pressure Switch, Engine Coolant Level (ECL) Warning Switch, Oil Level Thermal Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F1 - Oil Pressure Switch Engine Management Systems Locations

F66 - Engine Coolant Level (ECL) Warning Switch Locations

G1 - Fuel Gauge

G23 - Fuel Pump Locations

G169 - Fuel Level Sensor 2 Locations

G266 - Oil Level Thermal Sensor Engine Management Systems Locations

G393 - Fuel Level Sensor 4 Locations

J285 - Instrument Cluster Control Module Control Modules Overview

K3 - Oil Pressure Warning Lamp

K28 - Engine Coolant Level/Temperature (ECL/ECT) Warning Lamp

SB8 - Fuse 8 (on fuse panel B) Fuse Overview

T6e - 6-Pin Connector, under right cover of vehicle floor

T14e - 14-Pin Connector, black, in engine compartment

T16 - 16-Pin Connector, black, diagnostic coupling

T17a - 17-Pin Connector, black, in electronics box plenum chamber Connector Stations and Connectors Overview, in E-Box Plenum Chamber

T17d - 17-Pin Connector, blue, in electronics box plenum chamber Connector Stations and Connectors Overview, in E-Box Plenum Chamber

T32 - 32-Pin Connector, blue, on instrument cluster

Y24 - Display Unit in Instrument Cluster

(361) - Ground Connection (Fuel Level Sensor) in main wiring harness

(401) - Sensor Ground Connection (in interior wiring harness)

* - Output Sensor

** - Through August 2007

*** - From September 2007

Previous Diagram 121/18 (Tracks 225-238)
