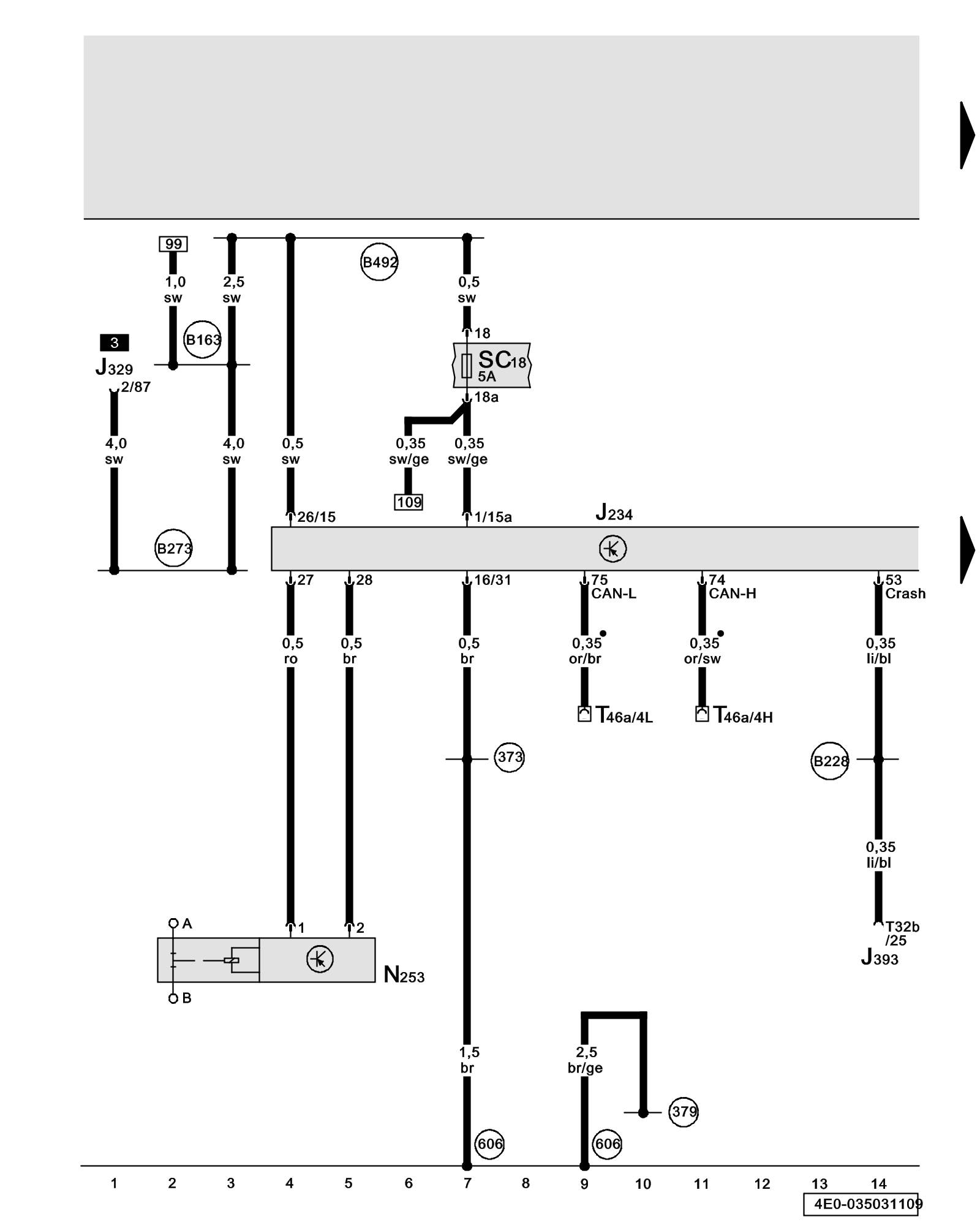

Diagram 35/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag Control Module, Igniter for Battery Interrupt





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag Control Module Control Modules Overview

J329 - Voltage Supply Terminal 15 (B+) Relay Overview of Relay Carrier

J393 - Central control module for comfort system Control Modules Overview

N253 - Igniter for battery interrupt Locations

SC18 - Fuse 18 (in fuse holder) Fuse Overview

T32b - 32-Pin Connector, Connector B, on Central Control Module for Comfort System

T46a - 46-Pin Connector, black, CAN-Bus Disconnection plug, left

(373) - Ground Connection 8 (in main wiring harness)

(379) - Ground Connection 14 (in main wiring harness)

(606) - Ground Connection (under center console at shifter) Ground Connections In Passenger Compartment

(B163) - Plus connector -1- (15), in wiring harness interior

(B228) - Connection (crash-signal), (interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B492) - Plus Connection 3 (15) (in interior wiring harness)

• - CAN-Bus (Data-Bus)

Next Diagram 35/3 (Tracks 15-28)
