Cooling System, Checking For Leaks

Cooling System, Checking for Leaks

Special tools, testers and auxiliary items required

• Cooling System Tester (V.A.G 1274)

• Adapter (V.A.G 1274/8)

• Adapter (V.A.G 1274/9)

Procedure

• Engine at operating temperature.

CAUTION!
Risk of scalding due to hot steam and hot coolant.

• When the engine is warm the cooling system is under pressure.

• To reduce pressure, cover coolant reservoir cap with cloth and carefully open.

- Position Cooling System Tester (V.A.G 1274) with Adapter (V.A.G 1274/8) on expansion tank.





- Generate a positive pressure of approximately 1.0 bar using hand pump of cooling system tester.

If the pressure drops:

- Look for leaking places and fix them.

Pressure relief valve in cap, checking

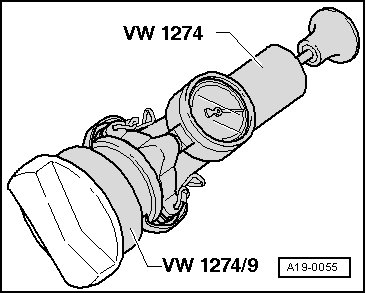

- Attach Cooling System Tester (V.A.G 1274) with Adapter (V.A.G 1274/9) on sealing cap.

- Generate a positive pressure using hand pump of cooling system tester.

• The pressure release valve must open at 1.4 to 1.6 bar.

If check-valve does not open as indicated:

- Replace cap.
