Cover Panel With Recirculated-Air Flap, Removing and Installing

Cover Panel With Recirculated-air Flap, Removing And Installing
- Remove left and right plenum chamber covers.
- Remove dust and pollen filter.
- Remove dome brace with reinforcement for scuttle panel trim.
- Remove windshield wipers and scuttle panel trim.

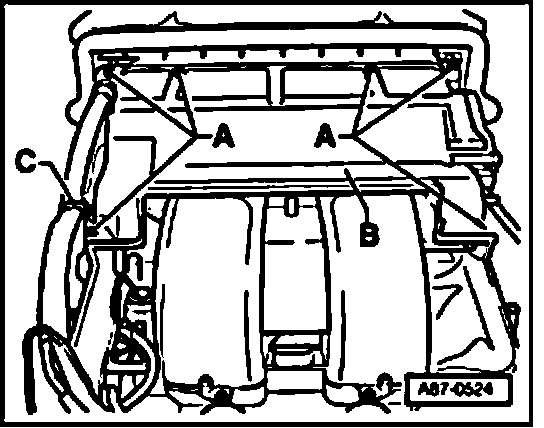

- Screw out bolts -A-.
- Open fasteners for wiring harness -C- on right and left of heating and A/C unit.
- Detach cover panel -B-.

NOTE: If entire cover panel has to be removed, recirculated-air flap control motor must be taken out as well
